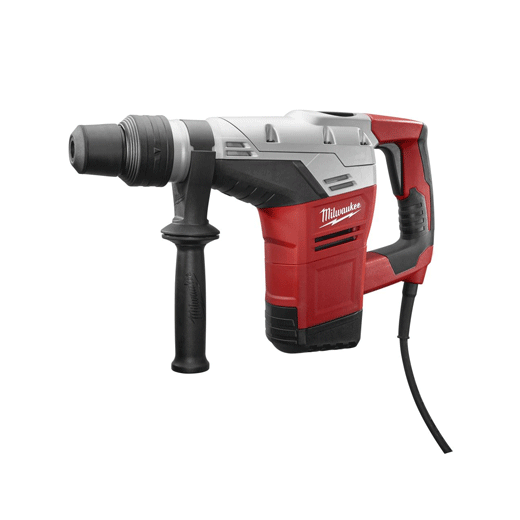

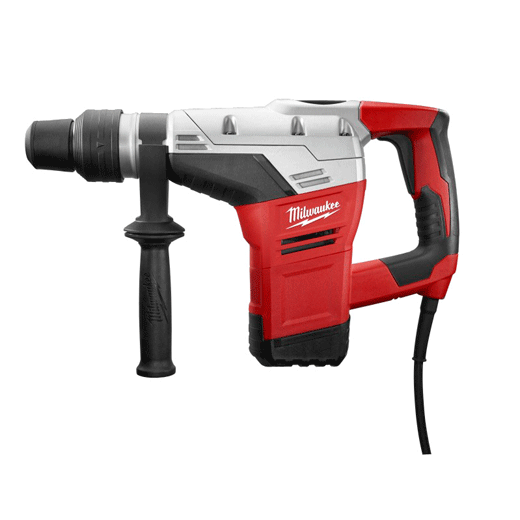

The Milwaukee 1-9/16" SDS Max Rotary Hammer features a 10.5 amp motor that delivers optimal power for concrete drilling and chipping applications. 5.5 ft-lbs of impact energy combined with 450 RPM and 3000 BPM result in fast drilling performance for the electrical, mechanical, plumbing, HVAC and general construction contractor. The 5317-21 features a 12-position chipping adjustment which allows the user to maintain the desired hammer position while chipping in any orientation. A mechanical clutch and advanced electronics provide ease of use and overall durability for the user.

Show More

Includes

  • 5317-20 1-9/16" SDS Max Rotary Hammer
  • Side Handle
  • Carrying Case

Features

  • Powerful 10.5 Amp Motor: Delivers 450 RPM and 3,000 BPM
  • Powerful Hammer Mechanism: Delivers 5.5 ft-lbs (7.5J) of impact energy for drilling in hard aggregate
  • CPT™ - Constant Power Technology: Delivers consistent performance in tough applications
  • Mechanical Clutch: Protects the tool when the bit binds up
  • 2-Mode Operation: Rotary hammer and hammer only for maximum versatility
  • 12-Position Chipping Adjustment: Allows the user to maintain the desired hammer position while chipping in any orientation

Specifications

Voltage 120V AC
Amps 10.5
Max Solid Bit Capacity 1-9/16"
Max Core Bit Capacity 4"
No Load RPM 450
No Load BPM 3,000
Modes Rotary hammer and hammer only
Chipping Yes
Clutch Yes
Cord Length 13 ft
Cord Type 3-Wire
Tool Length 17.75"
Net Tool Weight 15.0 lbs
Shipping Weight 22.85 lbs
