11 Amp Sawzall® Plus Recip Saw 6519-22

PRINT
6509-22
6519-22
6519-22
  • 6509-22
  • 6519-22
  • 6519-22

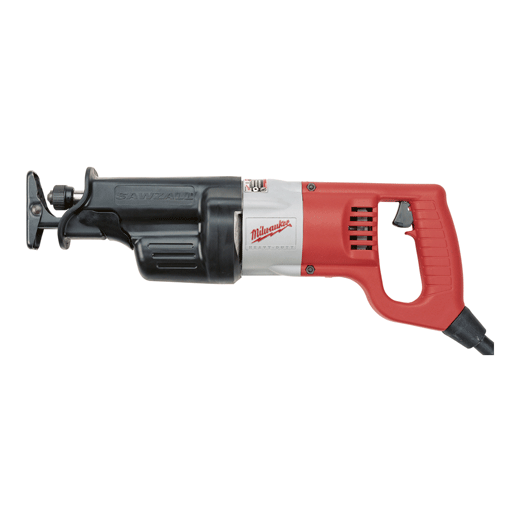

Built to perform, the 11 amp Milwaukee Sawzall Plus® Reciprocating Saw delivers more power than previous models rated at 8.5 amps. This Sawzall features a QUIK-LOK™ blade clamp for fast, easy blade replacements. A full 1-1/8 in. blade stroke and variable speed up to 2800 strokes per minute provide efficient cutting of any sawable material. A heavy-duty steel wobble plate mechanism and ball and roller bearings provide the durability that you have come to expect from Milwaukee Sawzalls. A gear protecting clutch extends the life and guards against damage to the mechanism due to sudden jars from pinched blades. An externally accessible brush cap and a keyless adjustable pivot shoe provide the convenience that you have come to expect from Milwaukee. All wrapped up in an impact resistant carrying case that will not rust.

Show More

Includes

  • 11 Amp Sawzall® Plus Recip Saw
  • Carrying Case

Features

  • Powerful 11 amp Milwaukee-built motor
  • Variable speed trigger: 0-2800 strokes per min.
  • Gear protection system

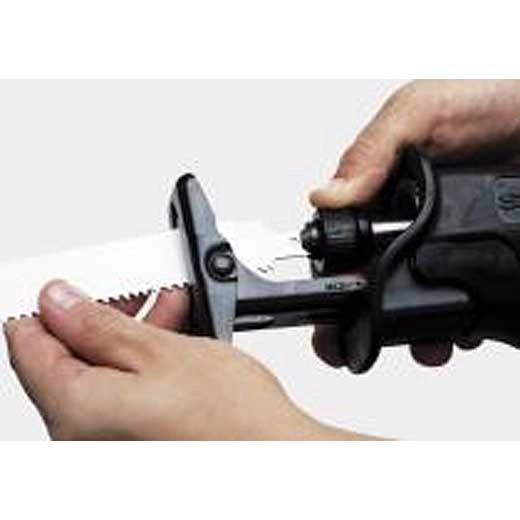

  • Heavy duty steel QUIK-LOK™ blade clamp system for easy blade changes
  • Keyless adjustable shoe
  • Double bearing wobble plate mechanism
  • Rubber boot for superior gripping
  • Double insulated
  • Uses standard 1/2 in. shank Sawzall® Blades - blades may be clamped upside down for special cutting needs
  • Impact resistant carrying case

Specifications

Voltage 120 AC
Amps 11.0
Stroke Length 1-1/8 in.
No Load Speed 0-2,800 SPM
Orbital Action No
Dial Speed Control No
Cord Type 8 ft. Fixed
Construction Type Grounded
Switch Type Trigger
Keyless Blade Clamp Yes
Keyless Adj Shoe Yes
Adjustable Handle No
Counter-Balance No
Impact Protection Yes
Length 17-3/4 in.
Tool Weight 7.0 lbs.
Shipping Weight 11.3 lbs.

Resources

Service Info - 6519-22

  • Wiring Diagram A18A Wiring Diagram A18B Wiring Diagram A18C Wiring Diagram A18D
