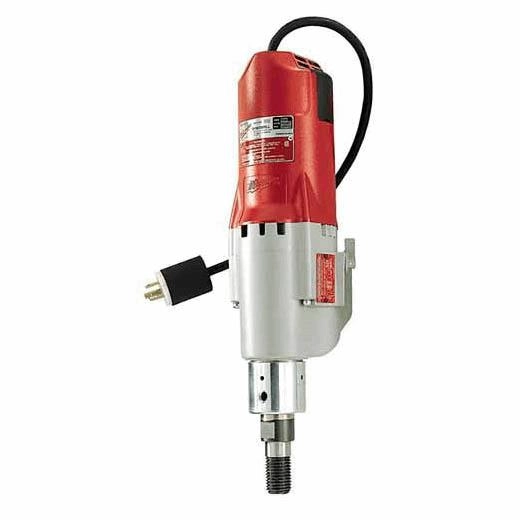

4004-20

Diamond Coring Motor, 300/600 RPM, 20 Amp with Clutch

Diamond coring motors are used with Vac-U-Rig® and Dymorig diamond core rigs to drill holes into reinforced concrete. This 20 amp model features 4.8 peak horsepower with a 300 rpm or 600 rpm operating speed. The 4004 has a clutch to protect gears and motor against overload. This unit will handle core bits from 4 in. to 14 in. in diameter.

Includes:

(1) Diamond Coring Motor, 300/600 RPM, 20 Amp with Clutch (4004-20) (1) Built-In Water Swivel (1) Open End Wrench (1) Water Control Valve (1) Water Hose Adapter
Key Features Specifications Reviews
  • Two speeds: 300 and 600 rpm
  • 20 amp motor
  • Clutch protection protects gears and motor
  • Built-in water swivel
Download Operator’s Manual Download Service Parts List

Product Specifications

No Load RPM 300-600
Max HP 4.8
Spindle 1-1/4"-7
Motor Protection Clutch
Plug Type L5-20P
Suggested Dia in Med Aggregate 7"-14" / 4"-7"
Voltage 120V
Tool Warranty 5 Years
Amps 20
Weight 24.0 lbs
Power Source Corded
