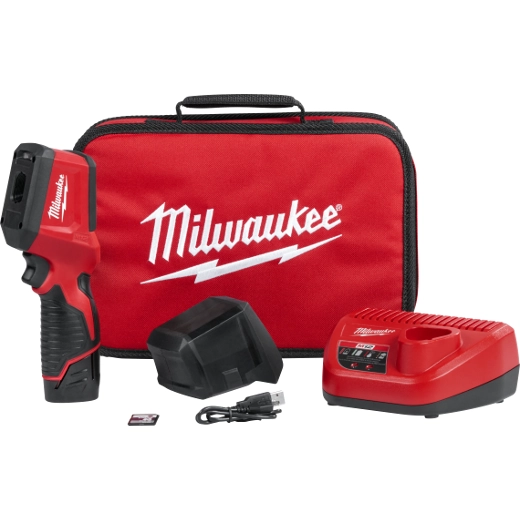

M12™ 102 X 77 Infrared Camera Kit

The M12™ 102 X 77 Infrared Camera is the first imager in its class to deliver oustanding 7,800+ pixel image detail for superior scanning than single-point infrared thermometers. Leverage Milwaukee® exclusive DUAL SENSE™  pixel technology to get crisp images of heat loss, electrical resistance, water damage and mechanical issues. On-screen temperature readout and 83:1 Distance-to-Spot ratio  gives users precise, real-time measurements from a distance. Capture, store and share images using the included SD card and USB cable. Fully compatible with Milwaukee® Thermal Imager Reporting Software for archiving, analyzing and reporting.

This product is no longer available. Feel free to contact us for suggestions of other products that may fit your needs. Contact Us

  • 7,854 (102 x 77) pixel resolution captures highest resolution image in its class
  • DUAL SENSE™ pixels are ultra-responsive, adjusting individually to eliminate blurring of hot and cold details
  • Take measurements from long range or down to the detail with 83:1 Distance-to-Spot performance
  • Measure surface temperatures 14⁰F to 626⁰F degrees for images spanning wide ranges
  • 2-Stage trigger activates lasers for easy scanning or quickly captures images
  • Dual lasers frame on-screen temperature area
  • Multiple color palettes available: Rainbow, Grayscale and Ironbow
  • Automatically locates highest and lowest temperatures
  • Fully compatible with Milwaukee® Thermal Imager Reporting Software available at Milwaukeetool.com
  • Compatible with over 70+ M12™ tools
You May Also Like...

Battery Specifications

Voltage 12V
Battery Type 12 Volt Lithium Ion

Product Specifications

Tool Warranty 5 Years
Temperature Range -10⁰C - 330⁰C (14⁰F-626⁰F)
Display Resolution 320 x 240 pixels
LCD Display 2.4" High-Resolution Color
Distance to Spot Ratio 83:1
Data Storage SD Card up to 32 GB
Drop Test 6'
Sensor Resolution 7,854 pixels (102 x 77)
Thermal Sensitivity 0.1°C at 30°C
Field of View 26.8 (Horiz) x 35.4 (Vert)
Laser Targeting Dual Lasers
Focus Method Fixed
Ranging Automatic
Color Palletes Iron, Rainbow, Gray
Reporting Software Fully Compatible with Milwaukee Tool Thermal Imaging Software (download)
Image File Formats .PNG, .DAT (Radiometric Data)
Run Time 10+ hrs
