Electrical Test Leads

Milwaukee’s Industrial Connecting Test Leads attach to all digital multimeters, clamp meters and fork meters. Designed to withstand up to 1000 volts and 10 amps, this set of connecting test leads used along with 49-77-1004 Industrial Test Probes and 49-77-1005 Industrial Alligator Clips are ideal for measuring voltage, current and resistance of most electrical systems. Covered by 2 year warranty. Nothing but HEAVY DUTY.

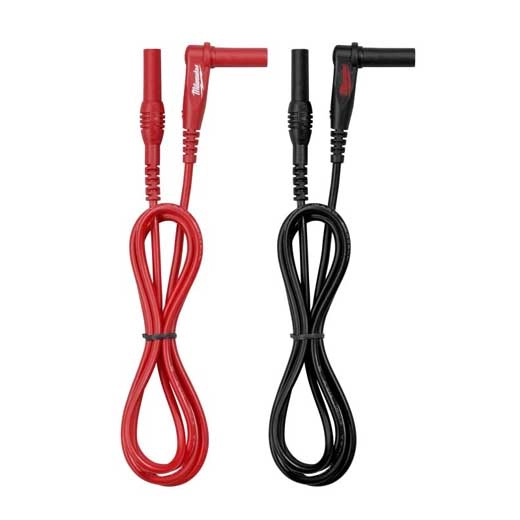

(1) Red Test Lead (1) Black Test Lead
  • Universal Connecting Test Leads plug into all digital multimeters, clamp meters, and fork meters
  • UL approved for improved safety
  • Constructed with flexible PVC insulation

Product Specifications

Warranty No Warranty
Length 39"
Maximum Voltage 1,000 Volts
Maximum Current 10 Amps
Safety Category Rating CAT IV 600V / CAT III 1000V
Overmold Material PVC
NIST Certificate of Calibration with Data No
