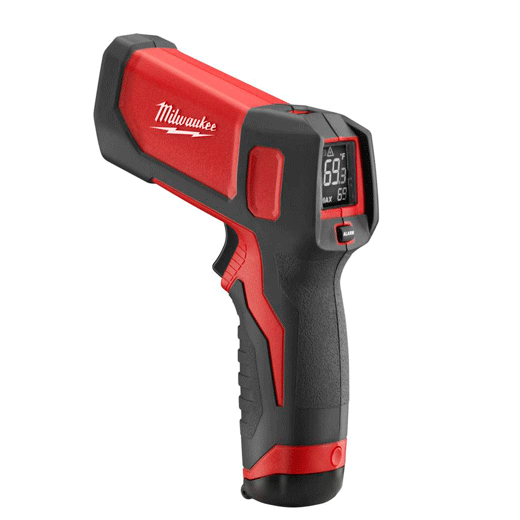

Laser Temp-Gun™ (NIST)

The Milwaukee Laser Temp-Gun™ Thermometer (NIST) is a heavy duty pistol grip infrared thermometer for professional residential, commercial and industrial applications. With a temperature range of -20 to 932° , a 12 to 1 distance to spot ratio and a K-Type thermocouple for contact temperature, the new unit provides a safe and accurate way to measure surface temperature for a wide variety of applications. Additional features include user configurable, Hi/Low alarm limits, an ergonomic pistol grip design, rugged over-molding for increased durability and grip, a large white on black display for clearer readings, a slide rail system to add proprietary accessories and on-board contact measurement jacks for increased accuracy. A NIST Certificate of Calibration with Data is also included, needed by many organizations as proof of calibration with the date when NIST Calibration was performed. Covered by Milwaukee 5-Year Warranty.


Laser Temp-Gun™ (NIST) (2266-20NST)
(3) AA Batteries (1) Manual (1) NIST Certificate of Calibration with Data

This product is no longer available. Feel free to contact us for suggestions of other products that may fit your needs. Contact Us

  • Surface Temperature Measurement from -20 to 932°F (-30 to 500°C)
  • 12:1 Distance to Spot Ratio. Measures a one foot spot from 12 feet away
  • User Configurable Hi/Low Alarm Settings
  • K-type thermocouple input for contact temperature
  • High Contrast, White on Black Display with Backlight for easy reading
  • Rugged over-molding increases durability and user grip
  • Hold, Max Value Functions
  • 0.95 fixed emissivity
You May Also Like...

Product Specifications

Tool Warranty 5 Years
Battery Type Alkaline (AA)
Display Type White on Black LCD
Switch Type Trigger
Length 6.5"
Contact Temperature -22° F to 842° F (-30° C to 450° C)
Display Backlight Yes
Rugged Over molding Yes
Temperature Range -20° F to 932°F (-30°C to 500°C)
Display Resolution 0.1° F (0.1° C)
Basic Accuracy 1.50%
Distance to Spot Ratio 12:1
Repeatability 0.50%
Response Time <500ms
Emissivity 0.95
Alarm HI LO Yes
Power Source Cordless
