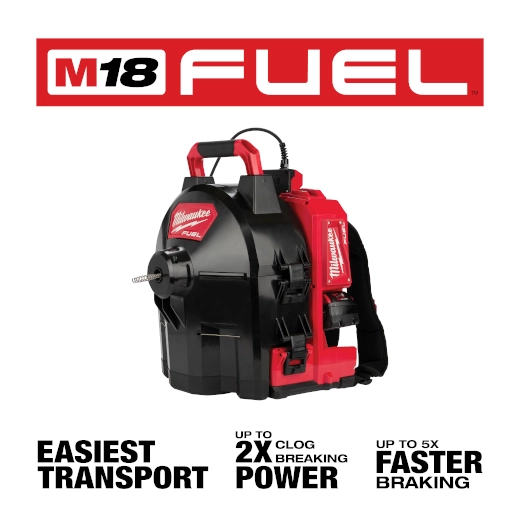

M18 FUEL™ SWITCH PACK™ Sectional Drum Machine with 5/16” Cable

Our M18 FUEL™ SWITCH PACK™ Sectional Drum System 5/16" Kit is the first drain cleaning solution that combines the benefits of sectional and drum machines, creating the single most versatile and mobile machine on the market. The drain cleaning machine allows you to tackle the most frequent challenge of any drain cleaning application - getting the machine onto the job. The SWITCH PACK™ System utilizes a modular design with backpack straps allowing you to easily transport it to any roof, drain, crawl space or cleanout. The tool-free drum connection allows you to quickly switch between cable sizes or add a second drum, allowing you to reach 100' down the line. All MILWAUKEE® SWITCH PACK™ drain cleaning drums are fully enclosed providing you with the best protection against job site mess. The POWERSTATE™ Brushless Motor provides you with more clearing power than corded units for tough jobs in up to 4" drain lines. Built-in REDLINK PLUS™ Intelligence improves your control with an integrated drum brake, slowing the machine up to 5X faster than competitor drums. Our M18™ REDLITHIUM™ battery pack powers through multiple jobs on a single charge, providing cordless mobility, safety, and power supply to the drain cleaning industry. The 5/16" cable is best for use on 1-1/4" - 2-1/2" drain lines. Other cable sizes also available. The SWITCH PACK™ is also compatible with our CABLE DRIVE™ Assembly (47-53-2774) that allows you to automatically feed and retract cable up to 15-20 feet per minute. The CABLE DRIVE™ assembly quickly attaches to and swaps between any Milwaukee SWITCH PACK™ Drum with the Mounting Plate (47-53-2773) installed. This kit includes (1) SWITCH PACK™ Drum w/ Anchor Cable (47-53-2775), (1) M18™ REDLITHIUM™ XC5.0 Extended Capacity Battery Pack (48-11-1850),(1) 5/16" x 75' Inner Core Drop Head Cable w/ RUST GUARD™ Plating (48-53-2772),(1) M18™ & M12™ Multi-Voltage Charger (48-59-1812).

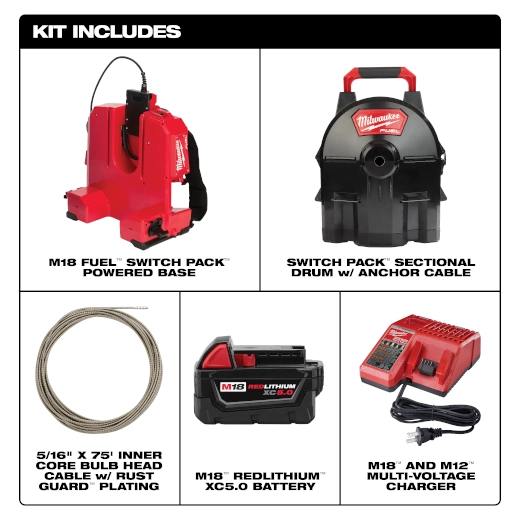

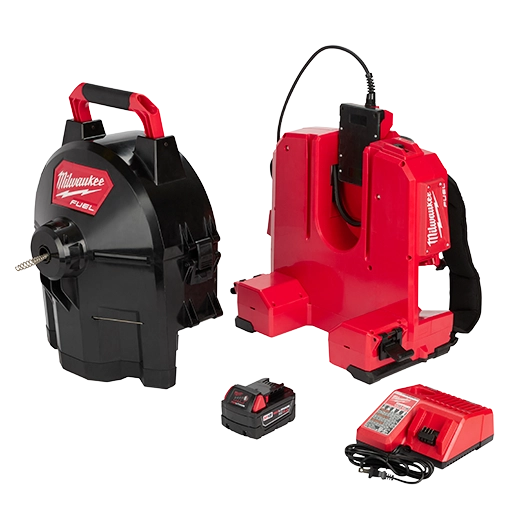

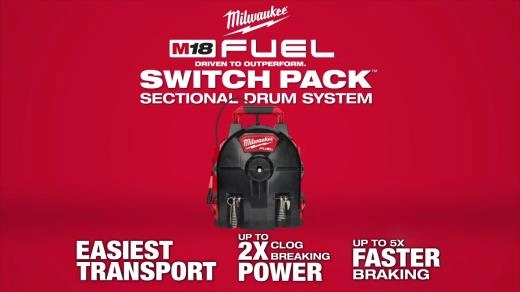

2775A-211 - M18 FUEL Switch Pack Sectional Drum System

M18 FUEL™ SWITCH PACK™ Sectional Drum Machine with 5/16” Cable

Key FeaturesSpecificationsReviews

Works With

Switch Pack™ Sectional
Drum System

Easiest Transport
Up To2XClog BreakingPower
Up To 5xFasterBraking
Cycle Arrow
3
1
2
Click a Number for Details

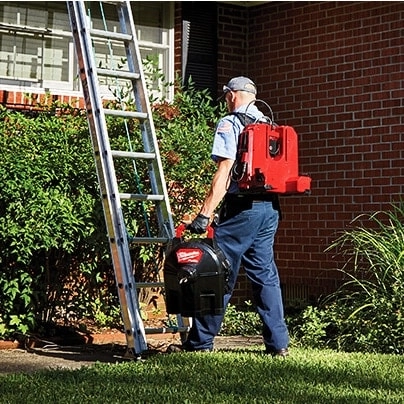

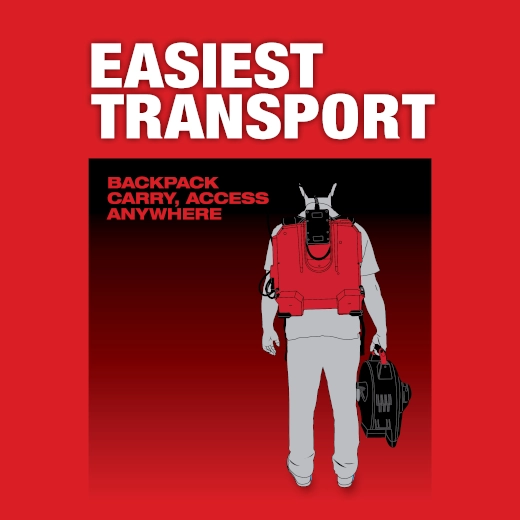

Easiest Transport

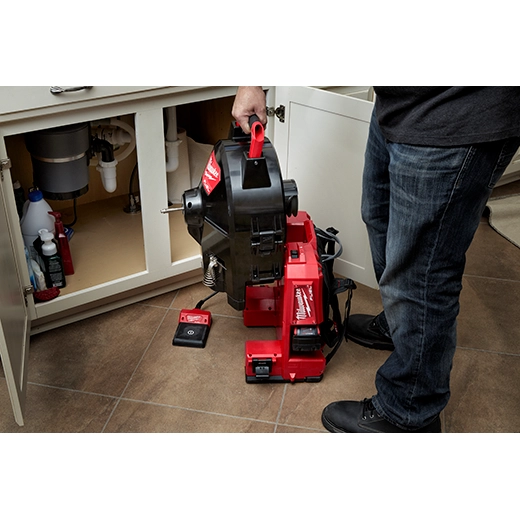

  • Backpack carry, access anywhere

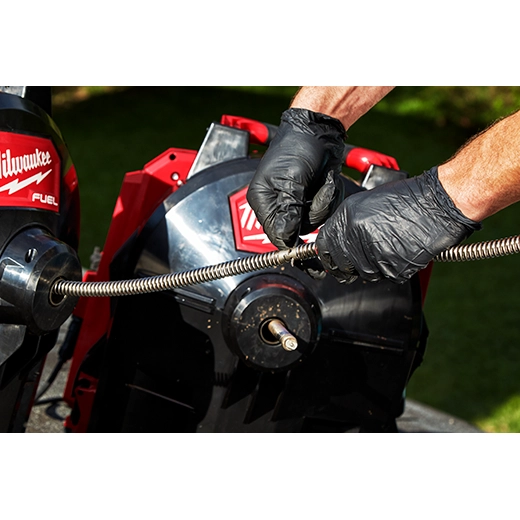

  • The SWITCH PACK™ System's modular design allows users to interchange between cable sizes

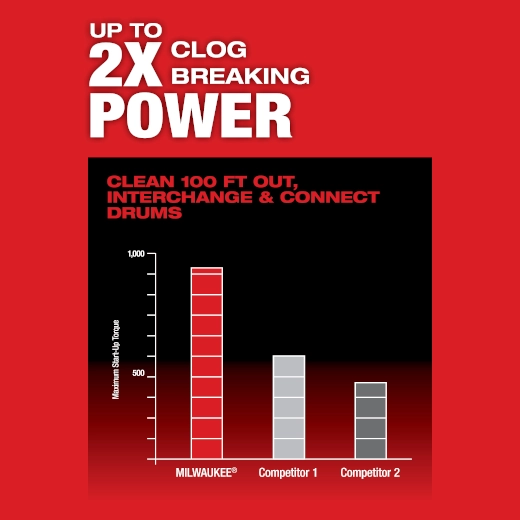

Up To 2x Clog Breaking Power

  • POWERSTATE™ Brushless Motor delivers maximum power 100 ft down the line

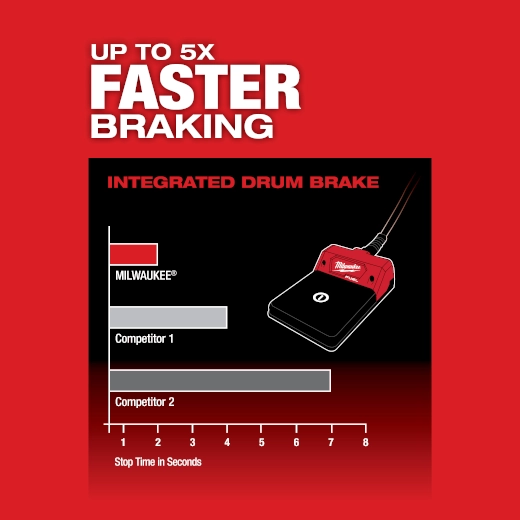

Up To 5X Faster Braking

  • Integrated Drum Brake
  • REDLINK PLUS™ Intelligence ensures maximum performance under load and improves control throughout the entire process

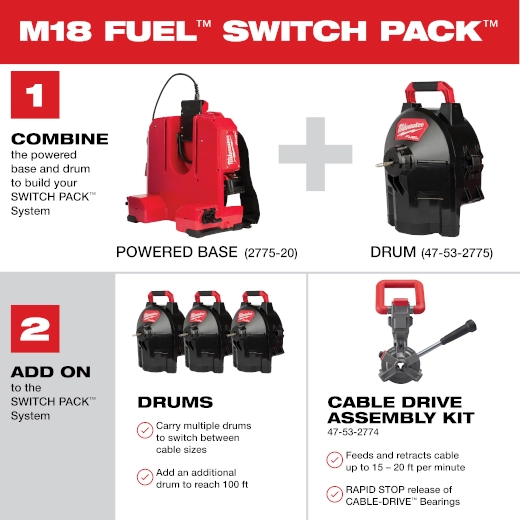

Add On The Switch Pack System

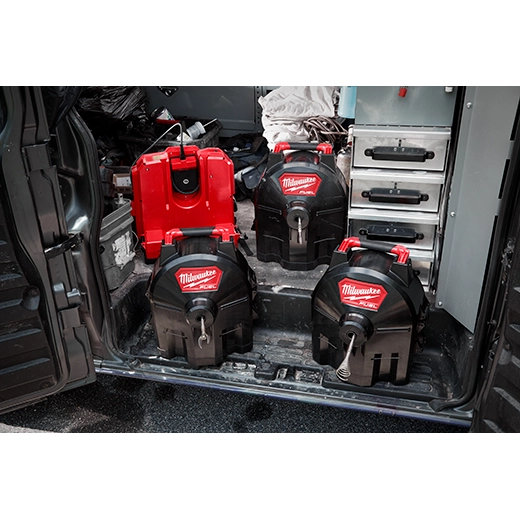

  • Carry multiple drums to easily switch between cable sizes
  • Add on additional drum to reach 100 ft
M18

PERFORMANCE DRIVEN
TRADE FOCUSED
SYSTEM WIDE

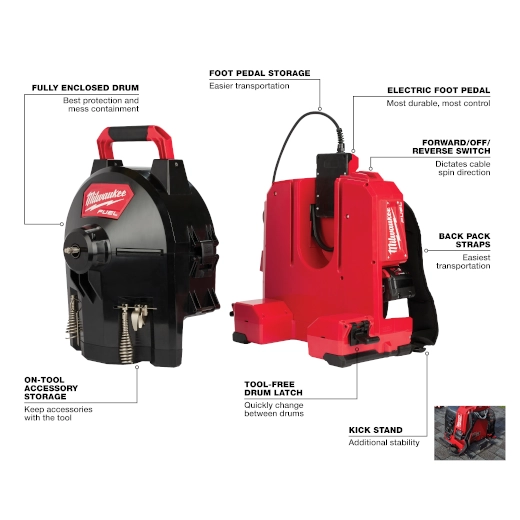

SWITCH PACK™ Drums: Interchange and connect various cable drums up to 100'

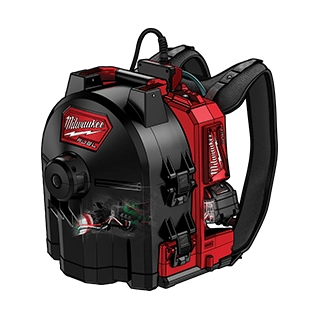

Built-In Backpack Straps: Easiest Transport
Integrated Drum Brake: Electronically slows drum up to 5 times faster than competitor drum machines

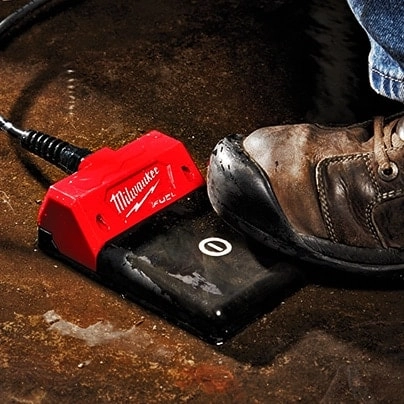

Electronic Foot Pedal With Non-Slip Grip: Maximum Durability
Fully Enclosed Drum: Best Protection and Mess Containment

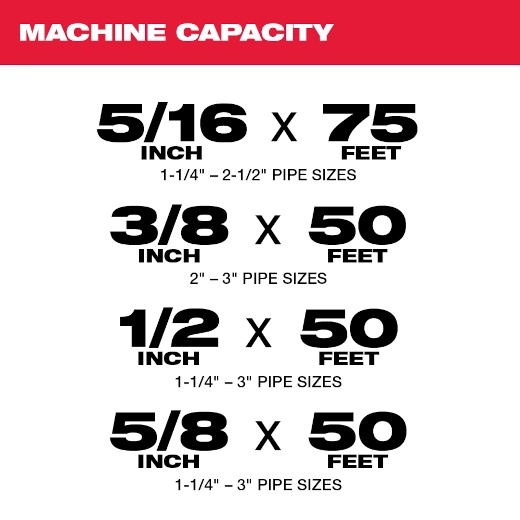

SWITCH PACK™ Drum Capacity: 75' x 5/16" Inner Core Cable; 50' x 3/8" and 1/2" Inner Core Cable; 50' x 5/8" Open Wind Cable (Not for Roots)
Spin Speed: 250 RPM
Accessory Attachment Storage: On-Tool

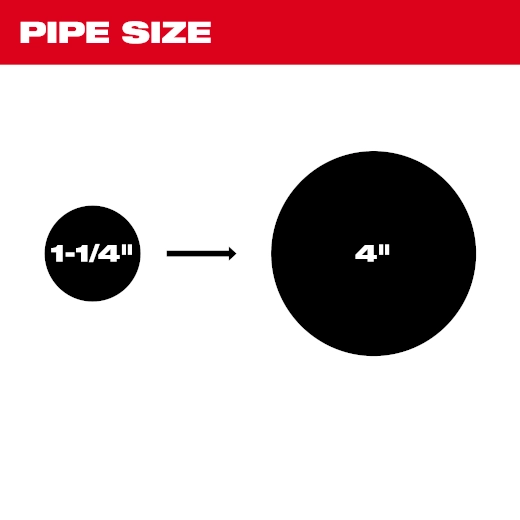

Drain Line Capacity: 50-100', 1-1/4" - 4" Drain Lines (See Recommended Cable for Pipe Size)
Warranty: 5-Year Tool/2-Year Cable/3-Year Battery
Accepts Other Brand Cables: Yes

You May Also Like...

Product Specifications

Line Type
N/A
Tool Warranty
5-Year Tool/2-Year Cable/3-Year Battery
Power Source
Cordless
Motor Type
Brushless
Material Composition
Plastic
Length
15 in
Weight
28.1 lb
Height
17.75 in
Width
15.75 in
Badge Branding
Not Applicable
Spin Speed
250 RPM
Electric Foot Pedal
Yes
Accessory Attachment Storage
On-Tool
Integrated Drum Brake
Yes
Accepts Other Brand Cables
Yes
Drain Line Capacity
100' x 1/2" Inner Core Cable; 100' x 5/8" Open Wind Cable
M18 Drum Capacity Open Wind Cables
5/16" x 50', Best For 1-1/4" - 2-1/2" drain lines, 3/8" x 35' Best For 2" - 3" drain lines, 1/2" x 50', Best For 3" - 4" drain lines, Open Wind Cables: 5/8" x 50', Best For 1-1/4" - 3" drain lines (soft blockages)
M18 Drum Capacity Inner Core Cables
5/16" x 50', Best For 1-1/4" - 2-1/2" drain lines, 3/8" x 35' Best For 2" - 3" drain lines, 1/2" x 50', Best For 3" - 4" drain lines, Open Wind Cables: 5/8" x 50', Best For 1-1/4" - 3" drain lines (soft blockages)
Back Pack Straps
Yes
Warranty
5 Year Tool/2-Year Cable/3-Year Battery
Maximum Drain Line Capacity
1-1/4" - 4" up to 100' (not for roots)
OneKey Compatible
Yes
Fuel
Yes
Voltage
18V
Brushless
Yes
Battery System
M18
