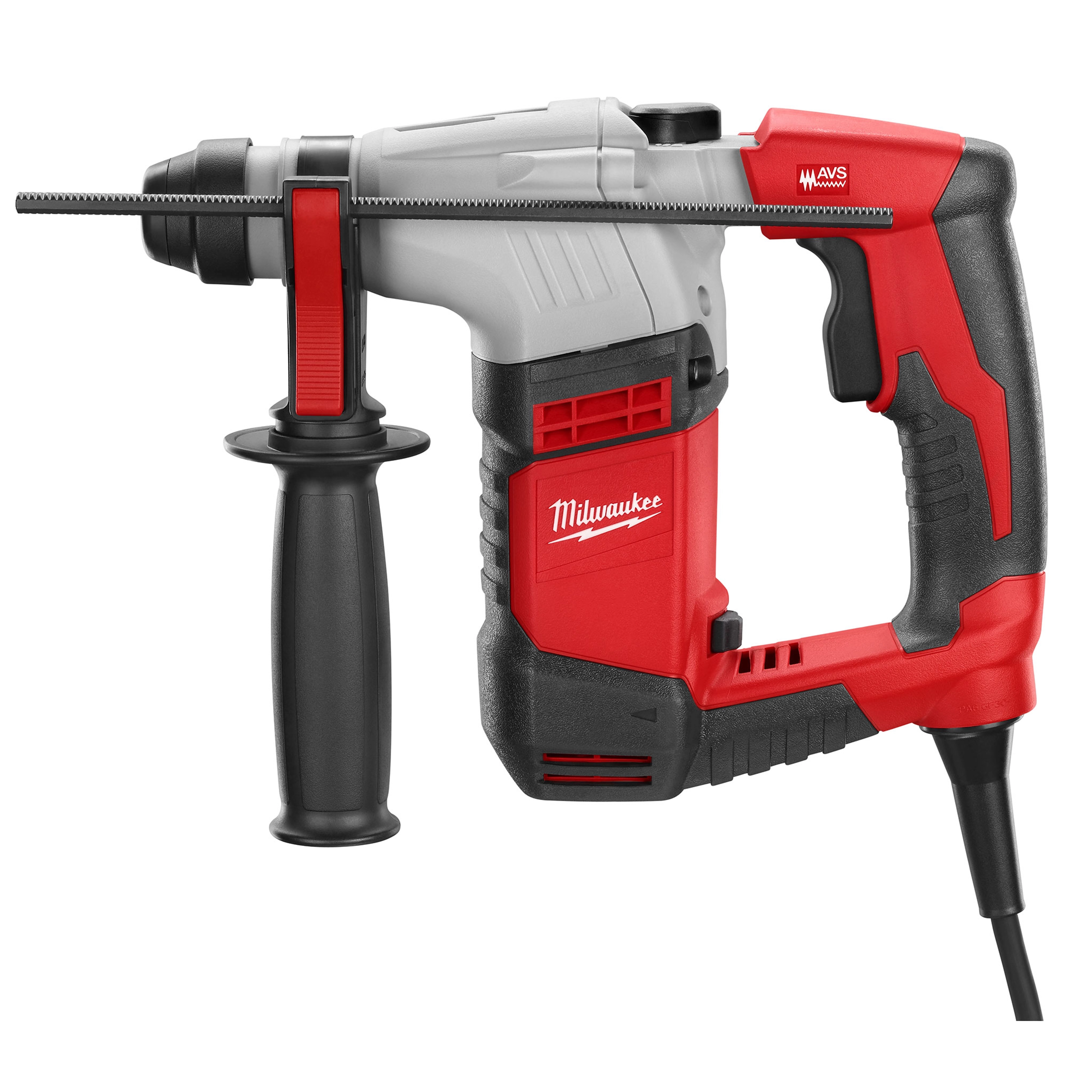

5/8" SDS Plus Rotary Hammer Kit

The most compact 5/8” hammer drill on the market is 30% lighter and 65% faster – with plenty of drilling power. At just 10.9” long and 4.6 pounds, Milwaukee Tool’s 5/8” SDS-Plus Rotary Hammer makes drilling overhead and in tight spaces easier, yet it’s powerful enough for most professional applications. With a 5.5-amp motor, it delivers 0-3,700 RPM, 0-4,400 BPM and 1.5 ft-lbs of torque. The innovative gear design and a drop motor provide unmatched balance, while Milwaukee’s unique Anti-Vibration System provides added comfort by minimizing vibration.  A mechanical clutch protects the motor when the bit binds, and two-mode operation offers maximum versatility regardless of the application. The kit includes a side handle, depth rod and carrying case.


(1) Side Handle (1) Carrying Case

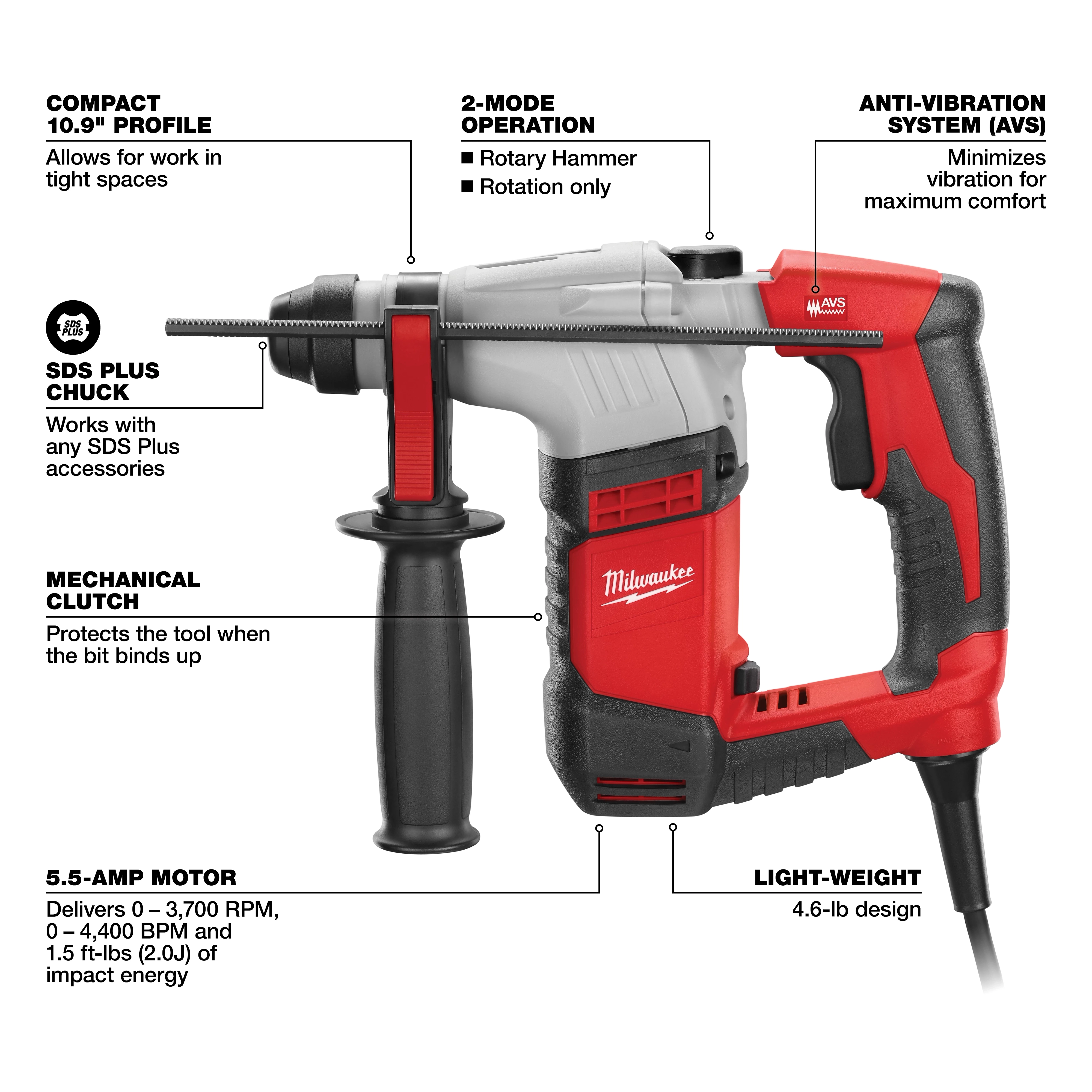

  • 2-Mode operation: Choose rotary hammer or rotation only for added versatility
  • AVS Anti-Vibration System: Minimizes vibration for maximum comfort
  • Compact 10.9” profile: Lets you work more efficiently in tights spaces
  • Lightweight 4.6-lb design: Reduces fatigue when you drill overhead and in horizontal applications
  • Mechanical clutch: Protects the motor when the bit binds
  • Powerful 5.5-amp motor: Delivers 0-3,700 RPM, 0-4,400 BPM and 1.5 ft-lbs of torque, providing up to 65% faster drilling speeds
You May Also Like...

Product Specifications

Amps 5.5 A
Cord Length Display=10%20ft&Actual=10
Cord Type Double Insulated
Tool Warranty 5 Years
Power Source Corded
Motor Type Brushed
Handle Type Drop Motor
Material Composition Metal
Length 15 in
Weight 9.03 lb
Height 5 in
Width 12.5 in
No Load RPM 0-3,700
No Load Speed 0-3,700
Clutch Yes
Blow Energy 1.5 ft-lbs
Trigger Lock No
Solid Bit Capacity 5/8"
Thin Wall Core Bit Capacity 2-1/8"
Drilling Mode Rotary Hammer and Rotation Only
Handle Style Drop Motor
Vibration Reduction Yes
No Load BPM 0-4,400
Thin Wall Bit Capacity 2-1/8"
Electronic Feedback No
Bit Shank SDS-PLUS
Voltage 120V
