Key FeaturesSpecificationsReviews

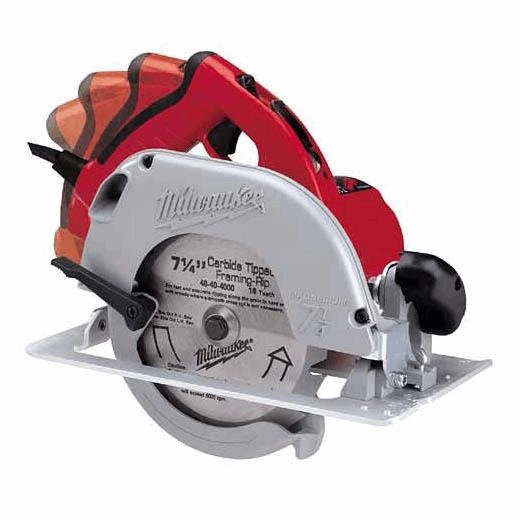

Exclusive TILT-LOK™ main handle adjusts to the work for most comfortable work position
Patented power assisted electric brake stops blade in seconds
Quik-Lok® cord makes job site replacement fast and easy
Powerful 3.0 max. horsepower, 15 amp motor
You May Also Like...
Product Specifications
Amps
15
Cord Type
10' QUIK-LOK®
Tool Warranty
5 Years
Power Source
Corded
Length
13-3/4"
Weight
10.6 lbs
Arbor Size
5/8"
No Load RPM
5,800
Spindle Lock
Yes
Construction Type
Double Insulated
Soft Grip Handle
Yes
Blade
7-1/4"
Tool Free Bevel
Yes
Maximum Bevel Capacity
50 degrees
Spindle
5/8"
Adjustable Handle
Yes
Depth of Cut at 45 Degrees
1-13/16"
Depth of Cut at 50 Degrees
1-11/16"
Depth of Cut at 90 Degrees
2 and 7-16 Inch
Electrical Brake
Yes
Blade Position
Right
Voltage
120V AC
