Key FeaturesSpecificationsReviews

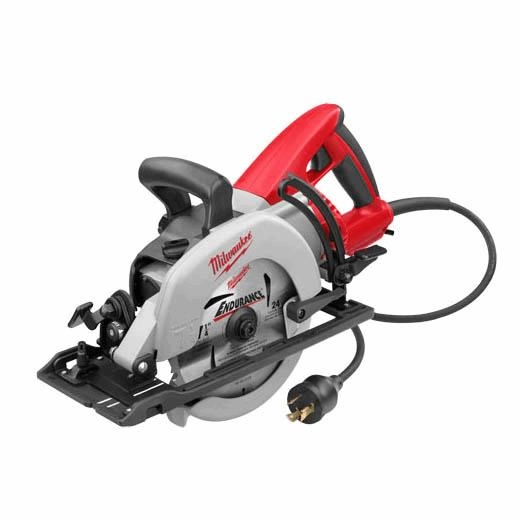

15.0 Amp, 4,400 RPM Motor- delivers maximum cutting performance and does not bog down, even under heavy loads.
Hardened steel worm gearing- provides maximum torque in the toughest applications.
Magnesium Construction- durable, lightweight
Heavy-Duty Composite Shoe- will not warp, bend or kick up a burr
Exclusive Oil Site Glass-instantly gauge current oil level
Folding Rafter Hook- Allows quick, convenient storage of tool from a rafter, joist or nail
Highly Visible Depth and Bevel Scales- visible from behind the body of the saw; provides quick, accurate adjustments
You May Also Like...
Product Specifications
Amps
15
Cord Type
Double Insulated
Tool Warranty
5 Years
Power Source
Corded
Length
19"
Weight
14.3 lbs
No Load RPM
4,400
Spindle Lock
Yes
Soft Grip Handle
Yes
Blade
7-1/4"
Maximum Bevel Capacity
51.5 degrees
Adjustable Handle
No
Depth of Cut at 45 Degrees
1-25/32"
Depth of Cut at 50 Degrees
1-9/16"
Depth of Cut at 90 Degrees
2 and 7-16 Inch
Blade Position
Left
Voltage
120 AC/DC
