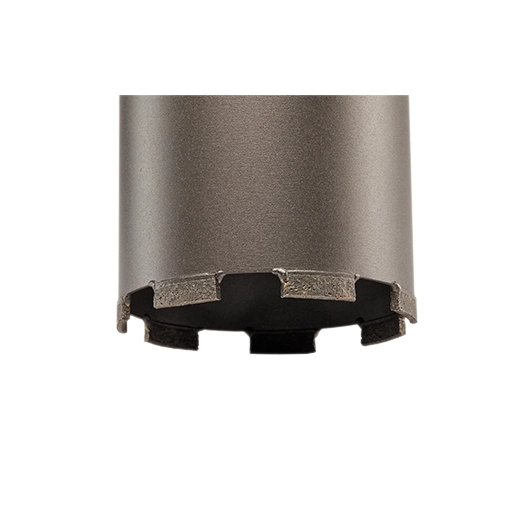

Diamond Ultra™ Dry Core Bits
Features / SpecsRefine OptionsReviews
Fastest drilling compared to previous Milwaukee dry core bits.
Delivers up to 20% longer run-time versus the previous generation of core bits.
Fastest drilling in concrete, brick, and block applications.
Diamond Ultra Dry Core Bits are engineered with thin kerf segments to provide the fastest drilling compared to previous Milwaukee dry core bits.
Segments designed with top quality diamonds
1-1/4"-7 Thread Connection for easy no-adapter use in the MX FUEL™ Core Dril
Designed to be used dry
13" Drilling depth
Product Specifications
Material Composition
Diamond Coated
Material Application
Concrete
Length
2.5 in
Weight
2.81089613573432 lb
Height
15.748031496063 in
Width
2.5 in
Size
SKU
Size
Thread
Max RPM
48-17-0112
1-1/4"
1-1/4" x 7
3310
48-17-0120
2"
1-1/4"-7
2070
48-17-0125
2 1/2"
1-1/4"-7
1655
48-17-0130
3"
1-1/4"-7
1380
48-17-0135
3 1/2"
1-1/4"-7
1180
48-17-0140
4"
1-1/4"-7
1035
48-17-0150
5"
1-1/4"-7
830
48-17-0160
6"
1-1/4"-7
690
