POWER
TO PULL
16' BAR
NO GAS
HEADACHES
2 HOURS
PER CHARGE
W/ 12' BAR

Vibratory Screed

MXF381-2CP

Learn More about the MX FUEL™ Equipment System

MX FUEL™ Vibratory Screed

Our MX FUEL™ Vibratory Screed provides consistent starts and the most reliable pours with the power to pull up to 16 ft bars, no gas headaches, and 2 hours of runtime per charge with a 12 ft bar. The POWERSTATE™ Brushless Motor delivers the power to pull 16 ft bar at 9,000 VPM with a variable speed trigger, giving you maximum control in stiff and wet concrete. The MX FUEL™ REDLITHIUM™ battery pack provides instant power with no gas headaches and requires no regular maintenance, produces less noise, and has zero emissions for a safer workspace, indoors or outdoors. The push-button start delivers instant power, eliminating the repetitive motions of a pull start and reducing downtime, allowing you to get jobs done faster without sacrificing the power and runtime you expect. The battery-powered vibratory screed is compatible with all MX FUEL™ REDLITHIUM™ batteries, giving you the hardest working and most reliable power for equipment. The MX FUEL™ Vibratory Screed can accept bars up to 16 ft long without sacrificing power and can run two motors on one bar for increased mobility. REDLINK PLUS™ Intelligence ensures optimal performance and provides overload protection to protect your machine and battery during the toughest applications. The MILWAUKEE® MX FUEL™ Vibratory Screed is ONE-KEY™ Compatible. You can track, manage and secure your equipment from your mobile device or computer using the industry’s largest Bluetooth® community tracking network. If your screed is ever lost or stolen, you can prevent tampering with remote lockout capability.

Power to Pull 16' Bar
No Gas Headaches
2 Hours Per Charge w/ 12' Bar

Runtime w/ 1 CP Battery At Partial Throttle

The CP203 Battery recharges in 45 Minutes.

8 FT Bar


130 min

~7,200 SQ.FT

12 FT Bar


120 MIN

~10,000 SQ.FT

16 FT Bar


30 MIN

~3,300 SQ.FT

MX FUEL™ TECHNOLOGY
1
2
3
Click a Number for Details

specifications

    Push Button Start

    The push-button start delivers instant power, eliminating the repetitive motions of a pull start. It allows you to start the machine in seconds every time, reducing down time so you can get the job done faster.

    Modular Design

    Easily remove the backpack harness when pouring walls or columns

    Wireless Remote

    Eliminate the hassle of constantly reaching behind you to turn machine on/off. Use up to 30 feet away for more freedom when using long shafts.

    Quick Connect

    Easily attach and detach shafts, compatible with both Milwaukee & Oztec. Accepts heads up to 2-1/2” and shafts up to 21 ft.

    ONE-KEY™ Compatible

    Track, manage and secure equipment from your mobile device or computer using the industry’s largest Bluetooth® community tracking network. If ever lost or stolen, prevent tampering with remote lockout capability.

    Battery Type
    Lithium-Ion
    VPM
    4,000 - 9,000
    Bar range
    4-16 ft
    Adjustable Handlebars
    Yes
    Kickstand
    Yes
    Weight with Battery - No Bars
    37 lbs
    Push Button Start
    Yes
    ONE-KEY Compatible
    Track. Manage
    Charge time
    (CP) 45 minutes
    Compatible with MBW Bars
    Yes
    Warranty
    2 year Equipment, Battery & Charger
    Battery System
    MX FUEL
    Includes

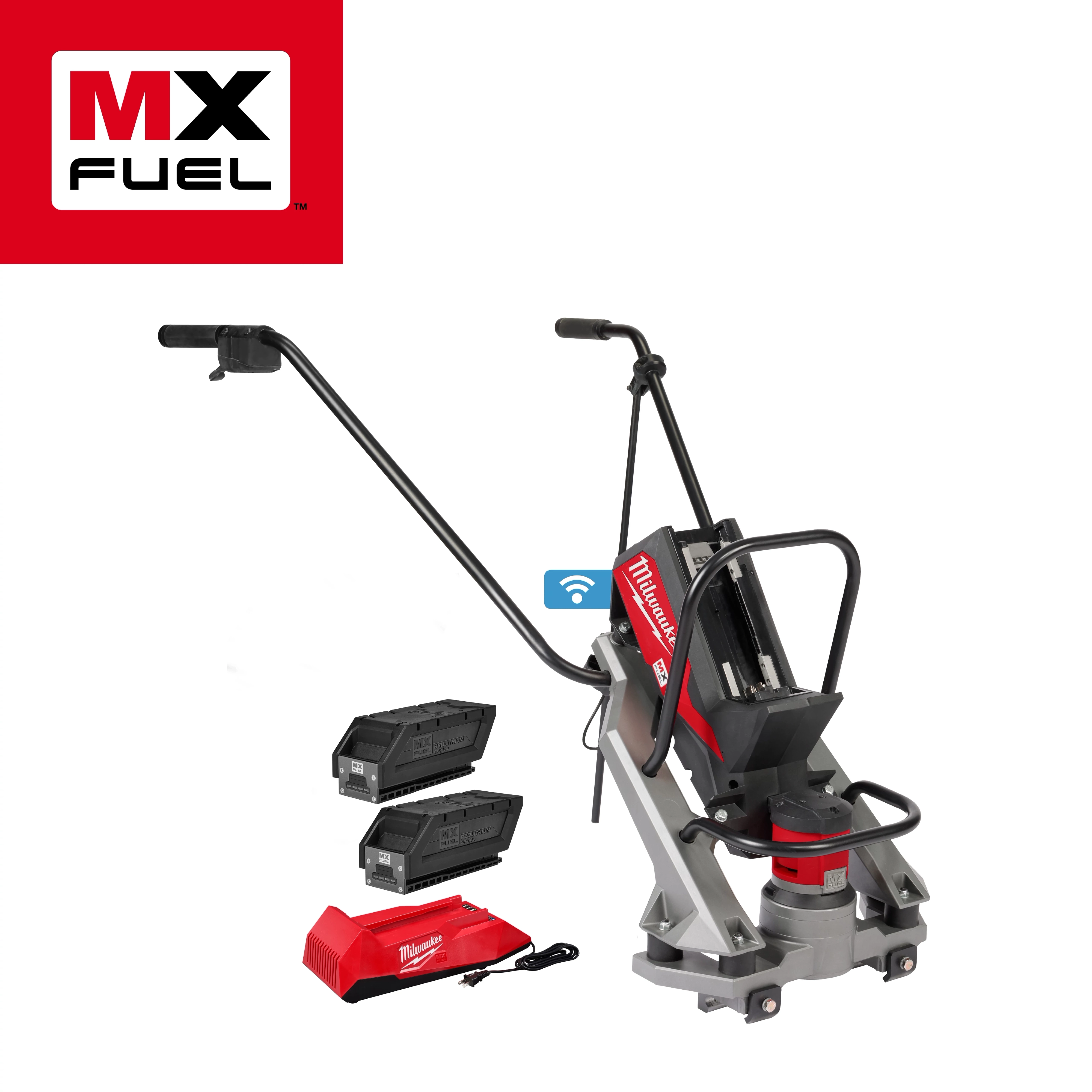

    (1) MX FUEL™ Vibratory Screed (2) MX FUEL™ REDLITHIUM™ CP203 BATTERY PACK (MXFCP203) (1) MX FUEL™ CHARGER (MXFC) (1) 9/16" Wrench
