New

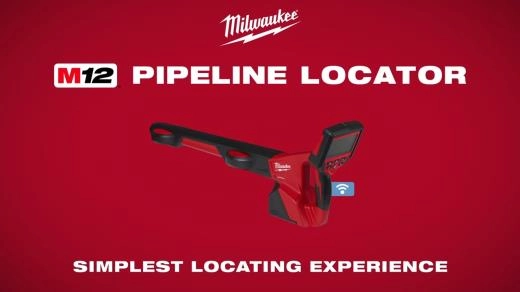

M12™ Pipeline Locator Kit

Our M12™ Pipeline Locator provides the most intuitive plumbing locating experience, simplifying the process of pinpointing sewer camera sondes and tracing underground sewer lines. A directional arrow appears on screen upon startup, immediately pointing in the direction of the sonde and eliminating the need to guess and check which direction to start. Once in range, a sonde icon appears on screen, confirming the exact location of the sonde. Dual 3D antennas eliminate false peaks and increase both sensitivity and precision, making it easier to locate than ever before. Featuring a 4.3” color LCD display, the locator simplifies navigation and provides a clear on-screen image even in direct sunlight. The locator is IP 65 rated for durability in harsh, outdoor working environments. Powered by M12™ REDLITHIUM batteries, the M12™ Pipeline Locator delivers all-day runtime on a single charge. The locator is equipped with ONE KEY™ tracking, security, and inventory management to protect your investment.

PIPELINE LOCATOR

Simplest Locating
Experience

DIRECTIONAL ICONS ELIMINATE GUESS & CHECK

  • Guiding arrows point towards sonde upon start up
  • On screen sonde icon confirms exact location

Dual 3D Antennas

  • Provides increase sensitivity for precise locating
  • On board calibration test monitors tool's accuracy for life of tool

READS SIGNAL CLEARLY

  • 4.3" Daylight Readable LCD Display
  • IP 65 Rated: Survives harsh jobsite conditions
  • Directional Icons Eliminate Guess & Check
  • Read Signals Clearly on 4.3” LCD Display
  • 360 Degree Guidance Arrow provides Fast, Accurate Guidance Upon Start Up
  • On-Screen Sonde Icon Confirms Sonde’s Exact Location
  • Line Trace Mode: Compass Icon Follows Energized Line
  • Two 3D Antennas for precise locating
  • Onboard Controls: Quickly Switch between locating modes
  • Calibration Test Monitors Tool’s Accuracy
  • Daylight Readable Screen for Optimal Outdoor Viewing
  • IP65 Rated: Survives Harsh Jobsite Conditions
  • One-Key™ Tracking, Security, & Inventory Management

Track. Manage.

Track your tool's location from anywhere
Lock your tool and disable remotely
Manage your assets your way
Learn More

Battery Specifications

Voltage 12V
Battery Type M12™

Product Specifications

Display Type 4.3" Color LCD Display
Sonde Frequencies 512 HZ, 640 Hz, 33 KHz
Line Trace Frequency 33kHz, 83kHz
Power Frequency 50Hz, 60Hz
Radio Frequency 10kHz - 22.7kHz Bandwidth
