M18 FUEL™ 1-1/2" Lineman Magnetic Drill High Demand™ Kit

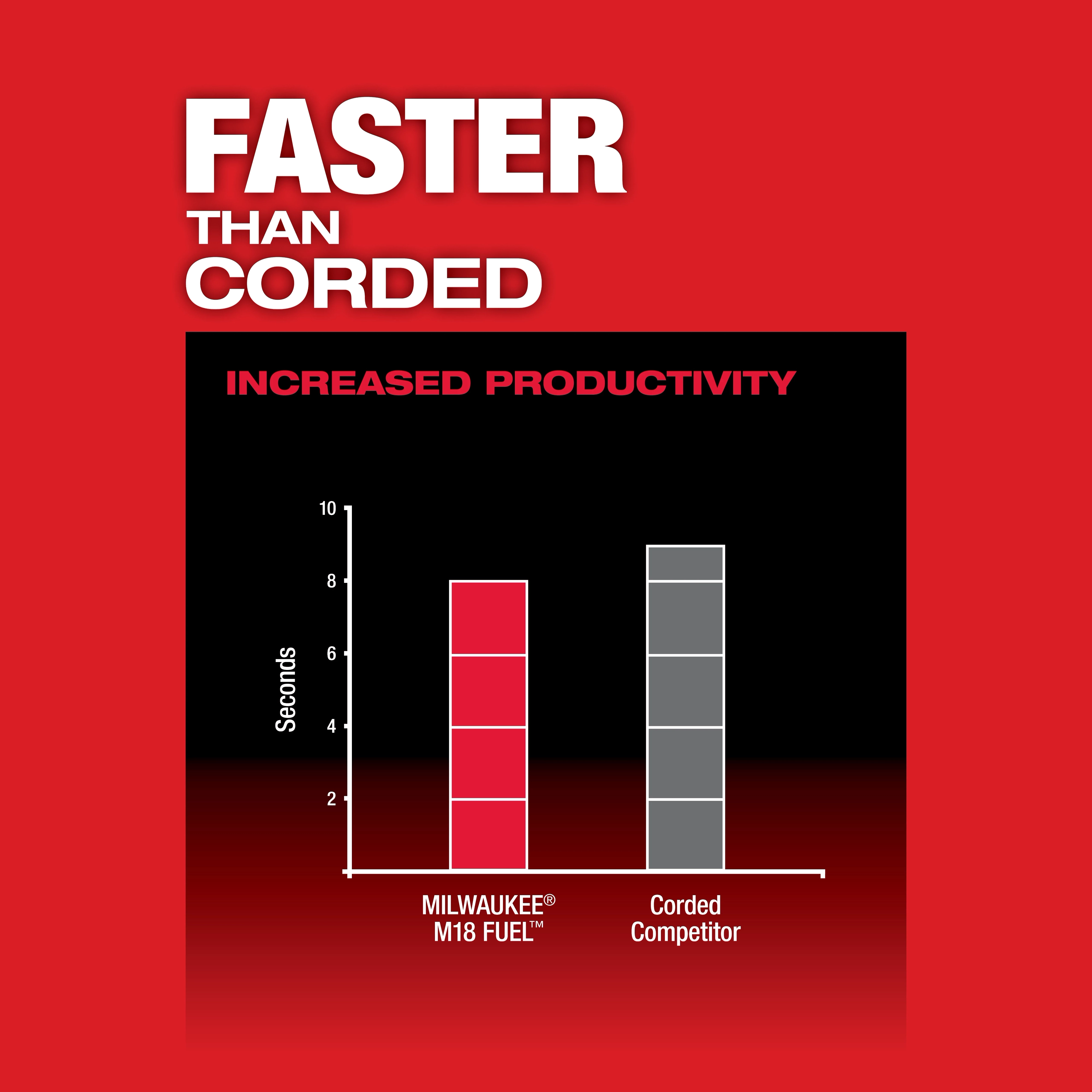

The M18 FUEL™ 1-1/2” Magnetic Drill drills faster than the number one corded competitor, delivers the strongest magnetic hold on 1/4” steel providing a safer drilling environment in this material, and drills up to (76) 13/16” holes per charge. The M18 FUEL™ 1-1/2” Magnetic Drill delivers safer drilling on ¼” steel by providing the industry’s strongest holding force on this material. By utilizing permanent magnets, the magnetic base operates without electricity; ensuring that the magnet does not deactivate if the battery is drained. Equipped with Auto-Stop lift-off detection, power to the motor is automatically cut if excess rotational motion is detected while drilling. Powered by a Milwaukee POWERSTATE™ Brushless Motor, both drills are faster than their corded counterparts, and deliver the same 1-1/2” annular cutter capacity. REDLINK PLUS™ Intelligence is the most advanced electronic system on the market, preventing damage to the tool and battery caused by overloading or overheating. The M18™ REDLITHIUM™ HIGH DEMAND™ 9.0 Battery Pack delivers up to 5X more run time, 35% more power, and runs 60% cooler than standard 18V lithium-ion batteries.  It maintains full power and runs substantially cooler through heavy applications, allowing users to push their cordless tools harder and longer than ever before.  The M18™ REDLITHIUM™ HIGH DEMAND™ 9.0 battery is fully compatible with 100+ M18™ tools.

Includes:

(2) M18™ REDLITHIUM™ HIGH DEMAND™ 9.0 Battery Pack (48-11-1890) (1) Safety Strap (1) Magnetic Lubrication Tank (1) Chuck Key (1) Carrying Case (1) AC/DC Vehicle Charger (1) 3/4” Weldon to ½” Chuck adapter (2) 1” retractable pilot pin

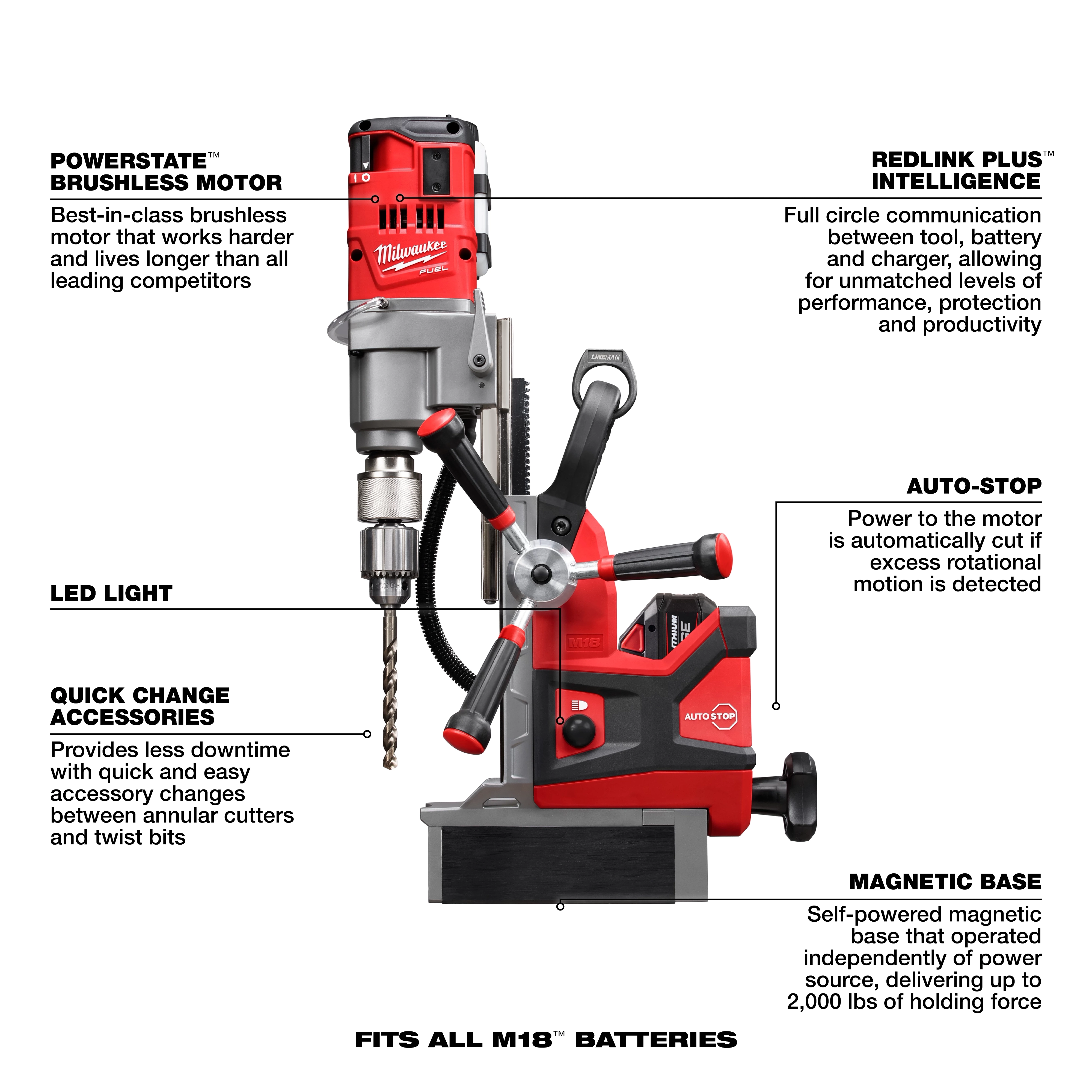

  • POWERSTATE™ Brushless Motor: Delivers maximum power and provides up to 2x longer motor life.
  • REDLINK PLUS™ Intelligence Provides optimized performance and overload protection using total system communication between tool, battery and charger.
  • REDLITHIUM™ XC5.0 Battery Pack: Provides superior pack construction, more work per charge and more work over the life of the pack than competitive batteries.
  • Self-Powered Magnet Base Operates Independently of Power Source and Delivers up to 2,000 lbs. of Holding Force
  • 1-1/2" Annular Cutter Capacity 1/2" Twist Bit Capacity
  • 2 Speed Gear Box: 400/690 RPM
  • Stroke Length: 5-3/4"
  • Motor Head Adjustment: 5-1/8"

Battery Specifications

Voltage 18V
Battery Type 18v Lithium-Ion

Product Specifications

Length 13-3/4"
Tool Warranty 5 Years
Width 7-1/2"
Battery System M18
Weight 29.5 lbs
Height 15-1/2"
Power Source Cordless
