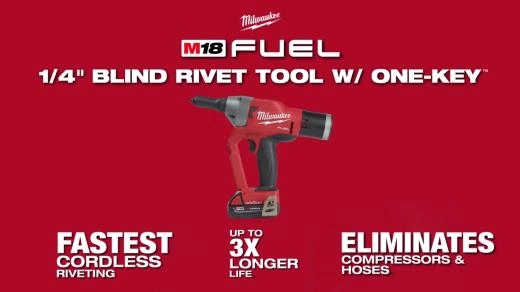

M18 FUEL™ 1/4" Blind Rivet Tool w/ ONE-KEY™ Kit

Our M18 FUEL™ ¼” Blind Rivet Tool w/ ONE-KEY™ is the fastest cordless rivet tool. It eliminates the need for hoses and compressors while delivering up to 3X longer life than other cordless riveters. This rivet gun significantly increases productivity, installing rivets up to 50% faster than cordless competitors. The premium steel alloy 3-jaw design delivers more work between jaw changes. While lightweight, this Milwaukee rivet gun was designed to withstand harsh shop or assembly plant environments, manufactured with an all-metal gearcase, impact strength plastics, and protective over-mold. The POWERSTATE™ Brushless Motor delivers 4,500 lbs. (20kN) of pulling force for high strength blind rivets in all materials. This rivet tool pulls up to 900 3/16” aluminum or 500 1/4” aluminum blind rivets on one charge with an M18™ REDLITHIUM™ CP2.0 battery. M18™ REDLITHIUM™ Battery Packs fit M18™ tools, providing you with more work per charge and more work over the battery life. REDLINK PLUS™ Intelligence ensures maximum performance and protects the rivet tool and battery against overloads, over-heating, and over-discharge. The MILWAUKEE® M18 FUEL™ ¼” Blind Rivet Tool with ONE-KEY™ compatibility, allowing you to track and manage your tool.

1/4" Blind Rivet Tool
W/ One-Key™

Fastest
Cordless
Riveting
Up to
3X
Longer
Life
Eliminates
Compressors &
Hoses

FASTEST CORDLESS RIVETING

POWERSTATE™ Brushless Motor delivers 4,500 lbs. (20kN) of pulling force for fast installation of high strength blind rivets in all materials

UP TO 3X LONGER LIFE

Maximum tool durability and jaw life with long-lasting premium steel alloy 3-jaw design

ELIMINATES COMPRESSORS AND HOSES

Provides lower cost of ownership and less hassle versus pneumatic riveters

M18

PERFORMANCE DRIVEN
TRADE FOCUSED
SYSTEM WIDE

  • Up to 50% faster than cordless competitors
  • Maximum tool and jaw durability provide up to 3X longer life
  • Eliminates compressors and hoses providing lower cost of ownership, greater productivity, more portability and more safety
  • Installs 3/16" (4.8mm), 7/32" (6.0mm), 1/4" (6.4mm) and 9/32" (7.0mm) aluminum, steel, and stainless steel rivets
  • Installs up to 500 1/4" aluminum blind rivets on one REDLITHIUM™ CP2.0 battery charge
  • POWERSTATE™ Brushless Motor delivers 4,500 lbs. (20kN) of pulling force for high strength blind rivets in all materials
  • 1.18" stroke length
  • Weighs only 5.6 lbs. with REDLITHIUM™2.0Ah battery
  • Only 12.5" in length including the mandrel collector
  • ONE-KEY™ Compatible: Ability to Track and Manage tools for increased productivity and investment protection
  • Premium rubber over-mold withstands corrosive materials and provides increased comfort when in use
  • Compatible with all M18™ batteries and chargers
You May Also Like...

Track. Manage.

Track your tool's location from anywhere
Lock your tool and disable remotely
Manage your assets your way
Learn More

Battery Specifications

Voltage 18V

Product Specifications

Height 9.5"
Weight 4.66 lbs
Width 2.5"
Power Source Cordless
Rivet Sizes 3/16", 7/32", 1/4", 9/32"
Rivet Material Aluminum, Steel, Stainless Steel
Pull Force 4,500 lbs
Stroke Length 1.18"
Nose Reach 3.13"
Length with Mandrel Collector 12.5"
Length without Mandrel Collector 10.13"
Battery System M18
