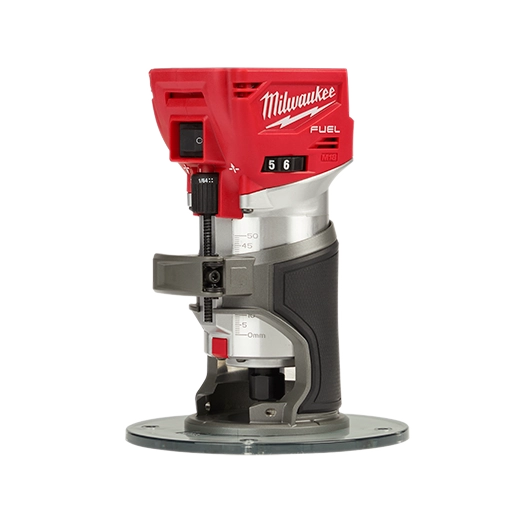

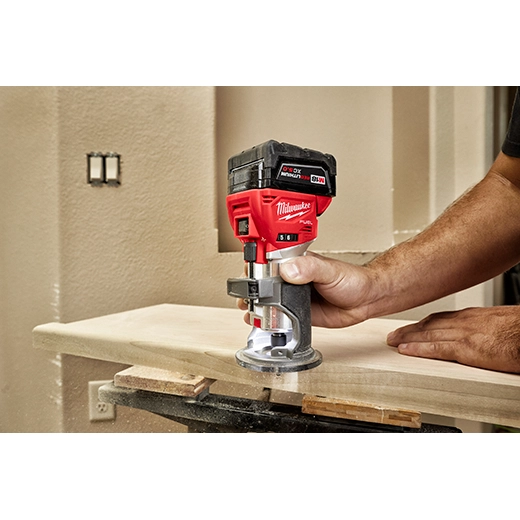

M18 FUEL™ Compact Router

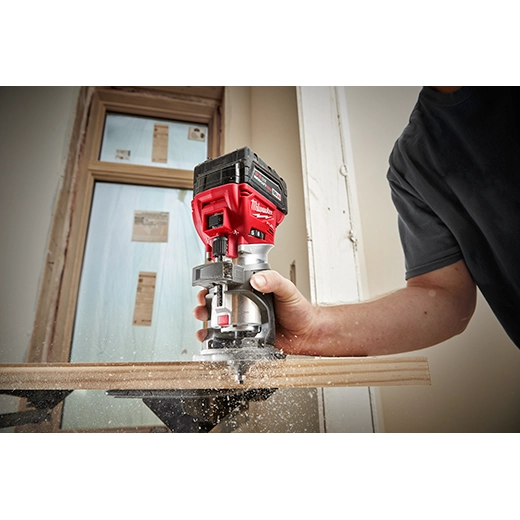

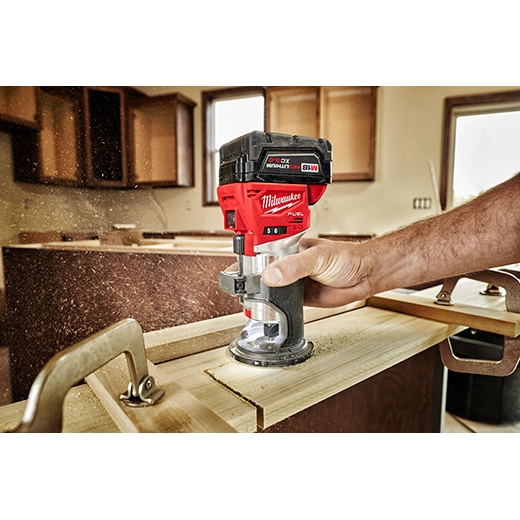

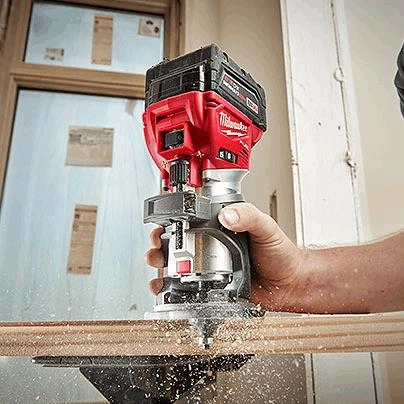

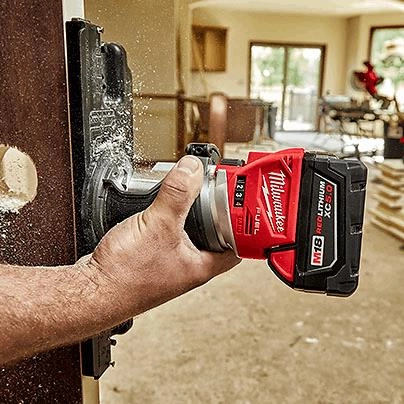

Our M18 FUEL™ Compact Router combines power, speed and accurate depth adjustments to deliver clean accurate cuts in a variety of materials and applications. The compact router leverages our POWERSTATE™ Brushless Motor and REDLINK PLUS™ electronics. This delivers the power of corded 1.25 horsepower trim routers and best-in-class 31,000 RPM providing you with power and speed for clean, quality cuts in hard materials. With our M18™ REDLITHIUM™ XC5.0 battery, the cordless compact router cuts up to 250ft of 3/8" roundovers in red-oak, providing you with all-day run time with fewer trips to the charger. The handheld router is equipped with a micro-adjust dial and macro-adjust button, providing you with fast and accurate depth adjustments for highly accurate work. A variable-speed dial with speed from 10,000 to 31,000 RPM gives you control in all applications. The compact router also features a sturdy 4" sub-base plate providing you with stability, and dual-LED lights illuminate your work surface. The M18 FUEL™ Compact Router is compatible with a plunge base and an offset base (sold separately).

Includes:

(1) M18 FUEL™ Compact Router (2723-20) (1) 1/4" Collet; 4" Round Sub-base Plate; (1) 5-3/4" Template Sub-base plate (1) 11/16" collet wrench (1) 7/16" Spindle wrench (1) Dust Shroud (1) Fixed Base (1) Straight Edge Guide

Compact Router

Corded
Performance
Fast
Accurate
Depth Adjustments
Cuts up to
250 ft
Per Charge

CORDED PERFORMANCE

  • Generates 1.25 peak Horsepower when paired with an M18™ REDLITHIUM™ XC5.0 Battery
  • 10,000-31,000 RPM

FAST ACCURATE ADJUSTMENTS

  • More Precise Cuts
  • Micro-Adjustment Dial for fine adjustments
  • Macro-Adjustment Button prevents slop

CUTS UP TO 250 FT PER CHARGE

  • Longer Run Time
  • 250 FT of 3/8” Roundover when using an M18™ REDLITHIUM™ XC5.0 Battery
M18

PERFORMANCE DRIVEN
TRADE FOCUSED
SYSTEM WIDE

  • POWERSTATE™ Brushless Motor: Power of corded compact routers and higher SPM to complete cuts in hard woods
  • REDLINK PLUS™ Intelligence ensures maximum performance and protects from overloads, heating and over-discharge
  • REDLITHIUM™ Battery Pack: Delivers more work per charge and more work over the life of the pack than competitors
  • Variable speed dial ranges between 10,000 and 31,000 rpm, providing precise control for clean edges and details

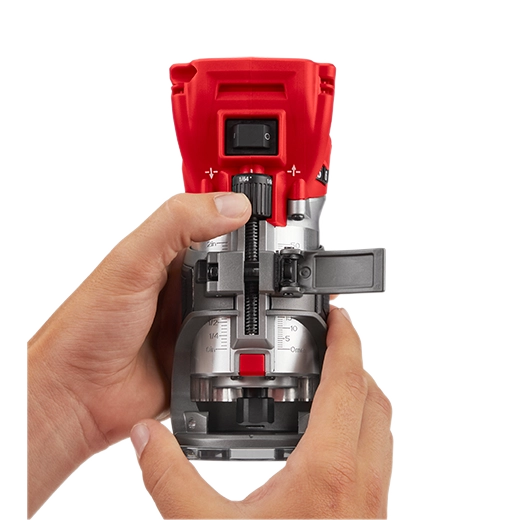

  • Macro Adjust button allows for fast macro-adjustments and 1.5" of adjustable range

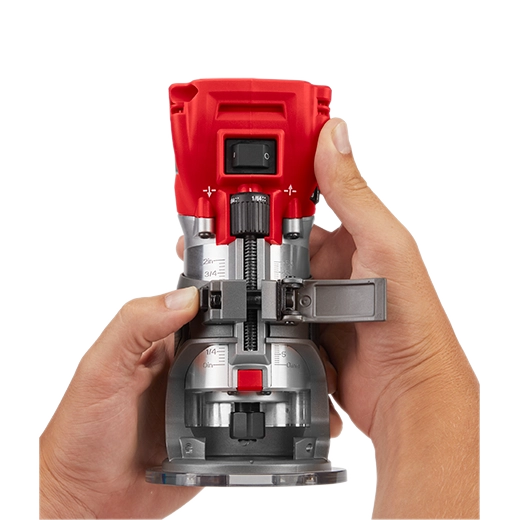

  • Fine adjustment screw allows for precise adjustments beyond 1/64" increments

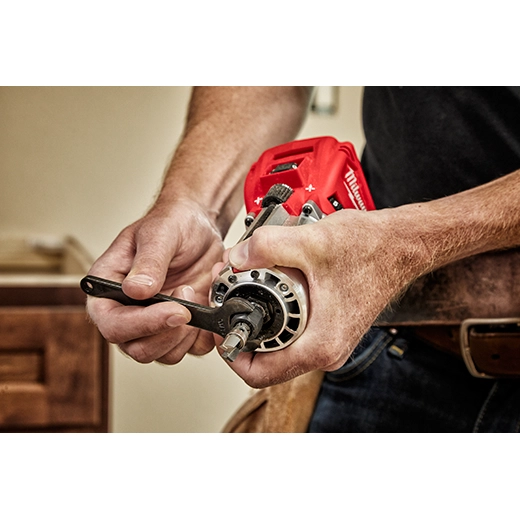

  • Tool-free spindle lock provides easy bit changes with one 11/16" collet wrench
  • Accepts 1/4" Shank router bits LED light illuminates the cut surface
  • Compatible with Milwaukee Plunge base and Offset base attachments (sold separately)
  • Includes straight edge guide; dust extraction attachment and 5-3/4" sub-baseplate which accepts 1-1/4" template bushings
  • Part of the M18 System, featuring over 200+ tools

Product Specifications

Length 4.79"
Width 3.23"
Weight 2.95 lbs
Height 6.86"
Power Source Cordless
