M12™ FORCE LOGIC™ Press Tool Kit w/ ONE KEY™ with 3/8", 3/4", & 7/8" ZoomLock MAX® & >B< MaxiPro® Press Jaws
Tool Options
In The Box (9)
Specs
Product Overview

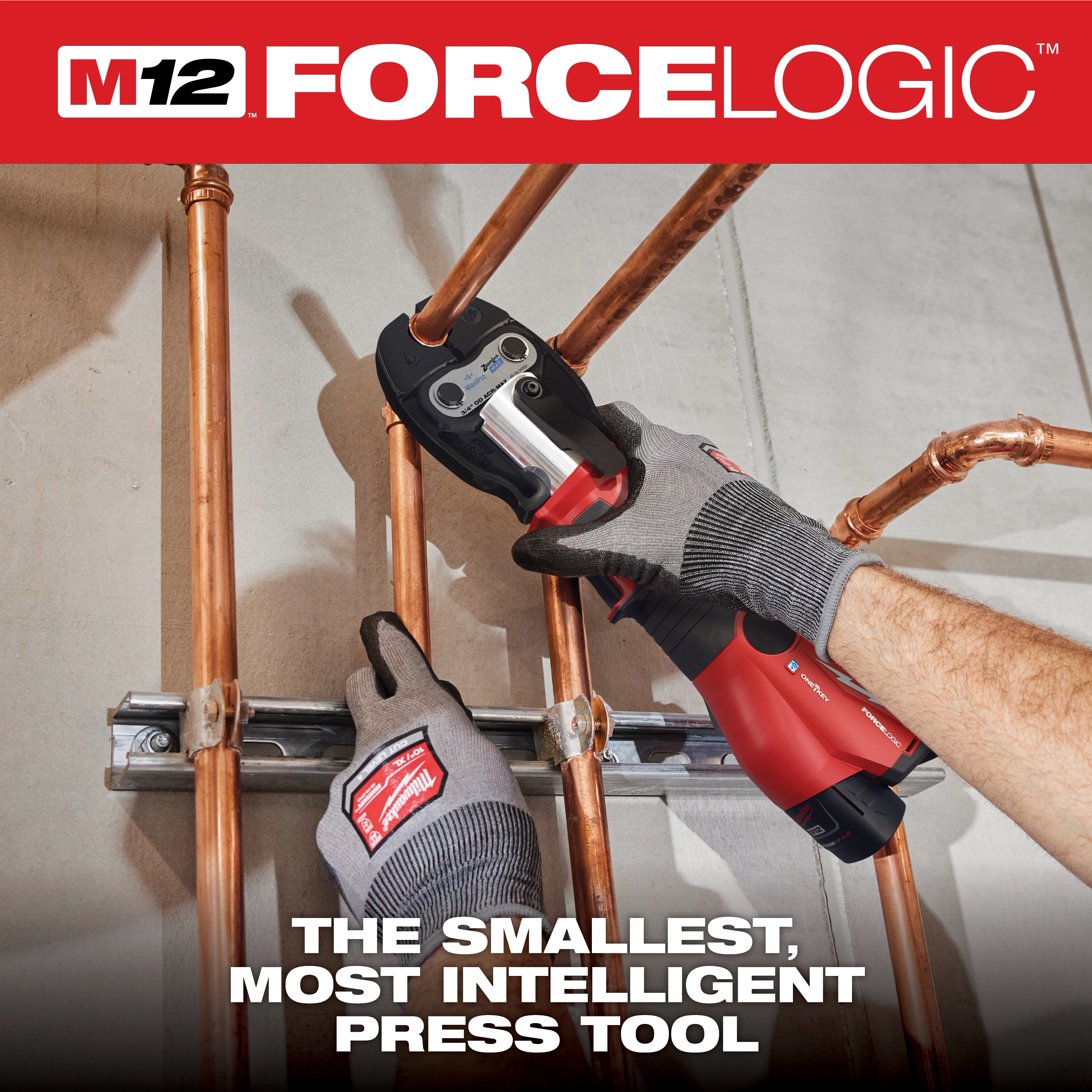

Our M12™ FORCE LOGIC™ Press Tool Kit with ONE-KEY™ is the smallest press tool on the market with remote tracking, management, and lockout, and represents a new level in portability and accessibility around installed pipe. The M12™ press tool features a one-handed, in-line design enabling you to operate the tool nearly anywhere you can fit your arm. Auto-Cycle ensures a full press every time with a visual indicator light that shows when a full cycle is achieved or when the tool needs calibration. The cordless press tool minimizes downtime by requiring service every 37,000 press cycles. When used with the included MILWAUKEE® press jaws, this tool delivers quality press connections on ZoomLock MAX® & >B< MaxiPro® press fittings for HVAC installations. This press tool is ONE-KEY™ enabled, providing time-stamped data logs for faster, more efficient reporting. Performance monitoring provides you with peace of mind about the quality of your connections. Our FORCE LOGIC™ press tool is powered by Milwaukee M12™ REDLITHIUM™ batteries, allowing you to Cut, Fasten, and Connect on One System. In addition to the press tool, this kit includes two M12™ REDLITHIUM™ CP2.0 battery packs, 3/8 in., 3/4 in., and 7/8 in. ZoomLock MAX® & >B< MaxiPro® press jaws, an M12™ Standard Charger, and a PACKOUT™ Tool Case.

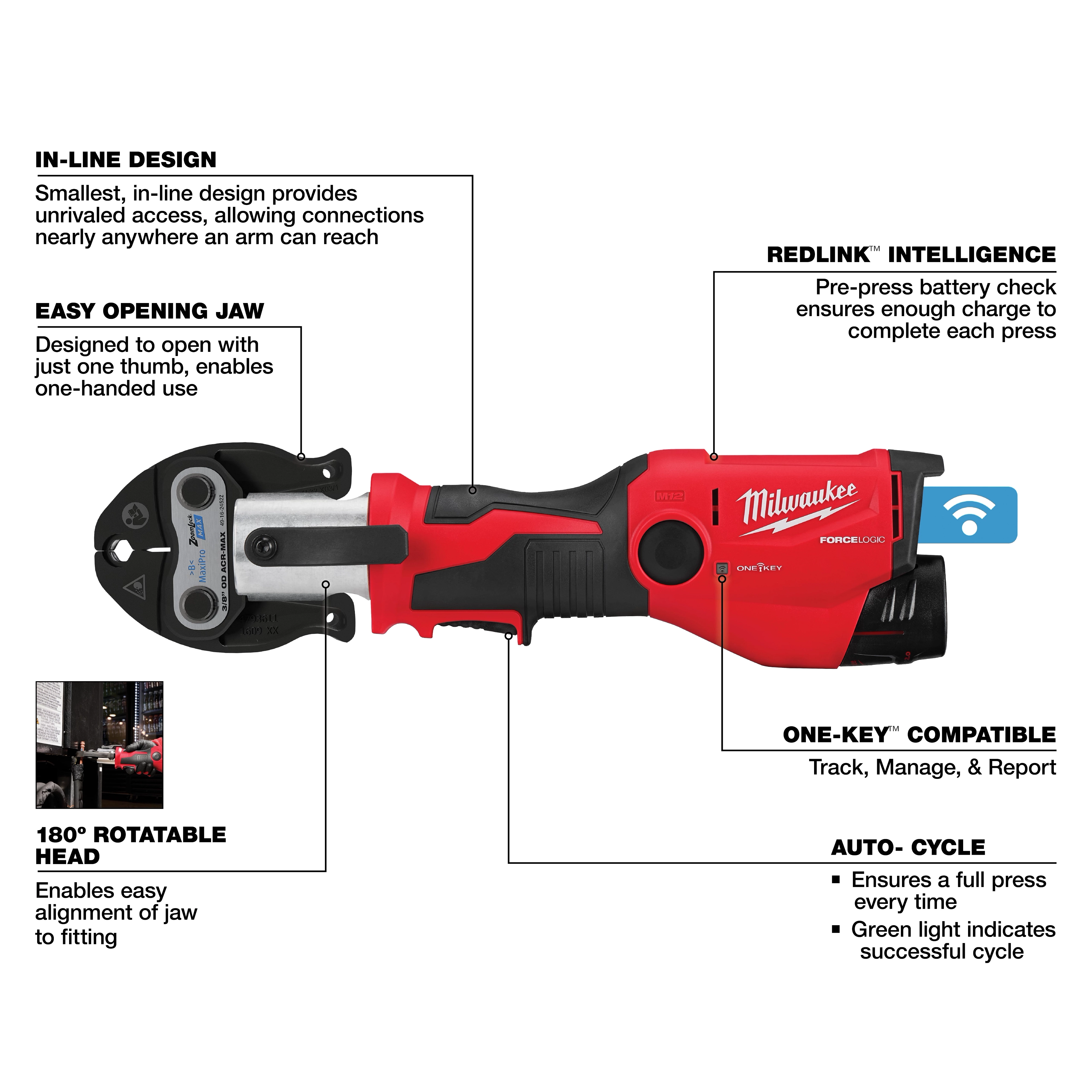

In-Line Design for Unrivaled Access
Enables Connections on 3/8", 3/4", & 7/8" ZoomLock MAX® & >B
Auto-Cycle Ensures Full Press Every Time
Prepress Battery Check Ensures Tool Won't Start A Press It Can't Complete
ONE-KEY™ Enabled for Tracking, Managing, and Reporting
Time Stamped Data Logs for Efficient, Precise Reporting
Performs 37,000 Press Cycles Between Service Inspections
Cut, Fasten, and Connect on One System
5-year Tool, 2-year Battery, 2-Year Jaw Warranty
Compatible With All M12™ Batteries & Chargers

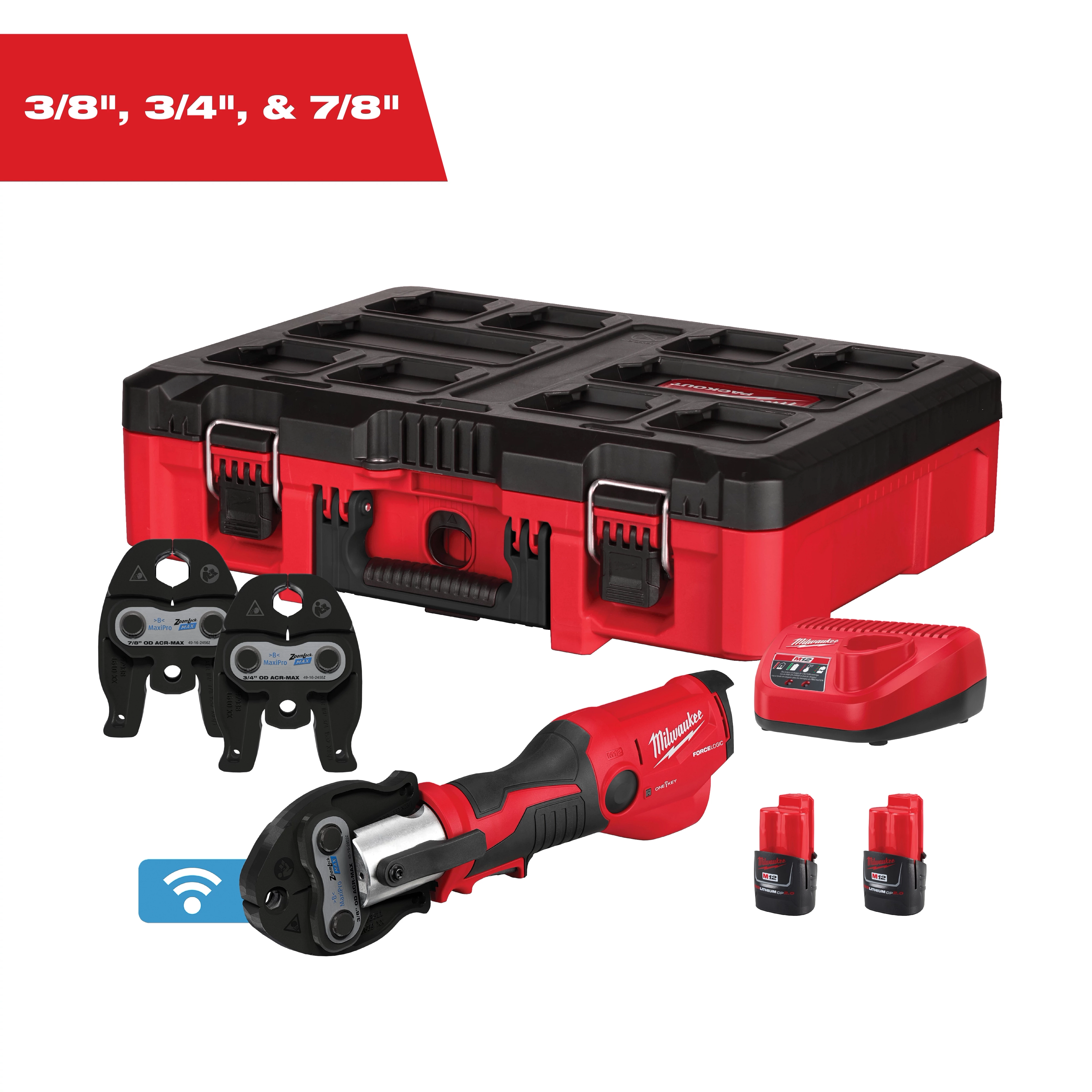

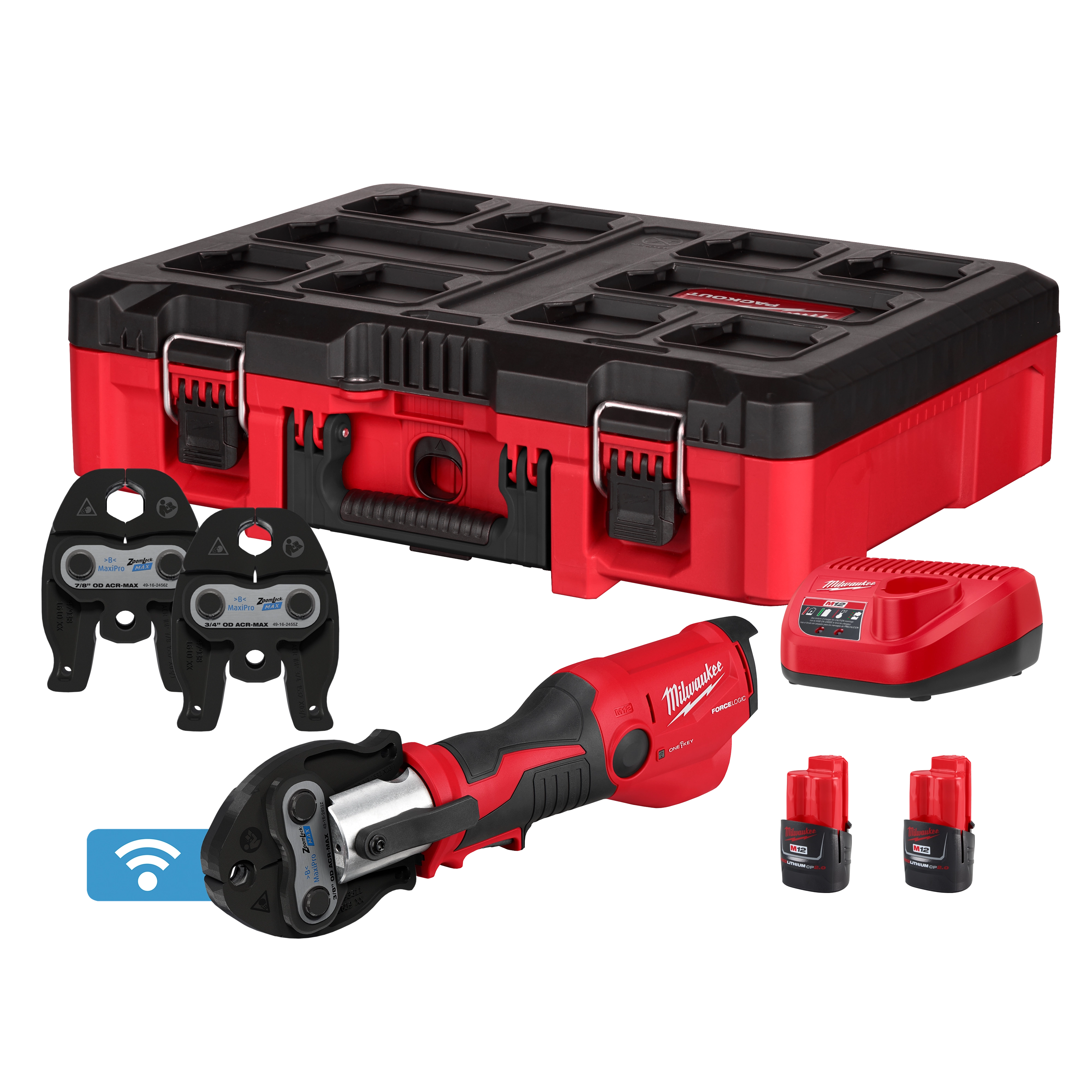

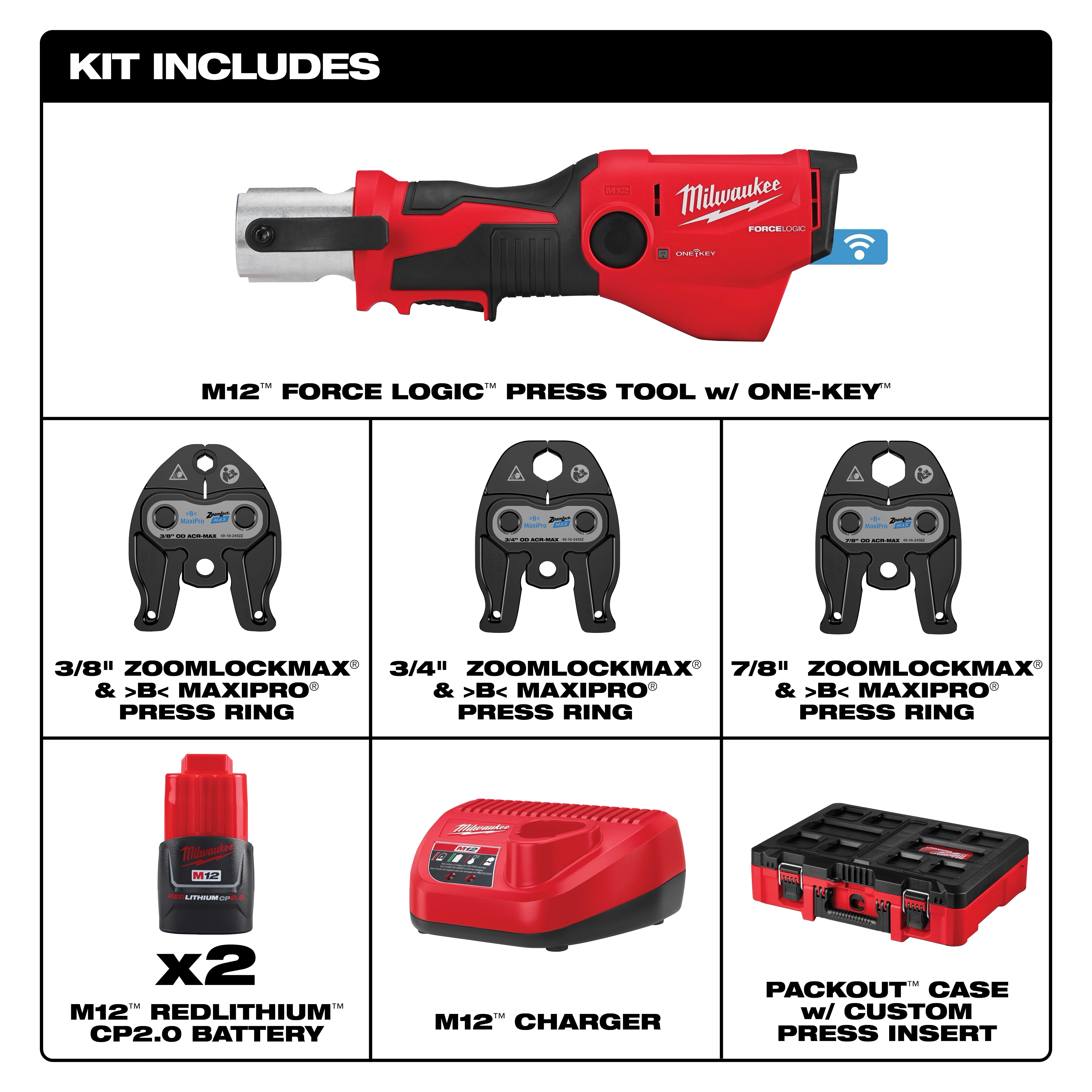

Includes: (1) M12™ FORCE LOGIC™ Press Tool (2573-20), (1) 3/8 in. jaw (49-16-2452Z), (1) 3/4 in. jaw (49-16-2455Z), (1) 7/8 in. jaw (49-16-2456Z), (2) M12™ REDLITHIUM™ CP2.0 Batteries (48-11-2420), (1) M12™ Standard Charger (48-59-2401), (1) ZoomLock® MAX Gauge, and PACKOUT™ Tool Case (48-22-8450)
Product Documents
Product FAQ
Q:
What materials can the M12™ Press Tool be used on?
A:
The M12™ FORCE LOGIC™ Press Tool with ONE KEY™ supports pressing copper, PEX, black iron, stainless steel, and ACR pipe systems. However, different jaws may be required for each material.
Q:
Can I use the same jaws for copper, PEX, and black iron?
A:
No. The included jaws are for copper. You’ll need to purchase separate jaws for PEX, black iron, and other materials.
Q:
Is the M12™ FORCE LOGIC™ Press Tool with ONE KEY™ suitable for HVAC applications?
A:
Yes, especially for ACR copper lines, but you must ensure you have the correct jaws for HVAC-rated fittings.
Q:
Can I use MegaPress fittings with the M12™ FORCE LOGIC™ Press Tool with ONE KEY™?
A:
Yes, but only up to 1 inch with the appropriate IPS-P Pivoting Jaw Kit.
Q:
Are the jaws interchangeable with M18™ press tools?
A:
No. M12™ and M18™ jaws are not interchangeable due to different locking mechanisms.
Q:
How many press cycles before service is needed?
A:
The tool is rated for 37,000 cycles before requiring calibration or service.
Q:
Does the M12™ FORCE LOGIC™ Press Tool with ONE KEY™ have a press confirmation feature?
A:
Yes. A visual indicator confirms when a secure press has been made and alerts when calibration is needed.
Q:
What is the maximum pipe size the M12™ FORCE LOGIC™ Press Tool with ONE KEY™ can press?
A:
With the right jaws, it can press up to: 1¼" CTS copper, 1" black iron, 1½" PEX
Q:
What is ONE-KEY™ and how does it help the M12™ Press Tool?
A:
ONE-KEY™ allows for remote tracking, tool management, and data logging. You can monitor tool usage, generate reports, and even lock the tool remotely.
