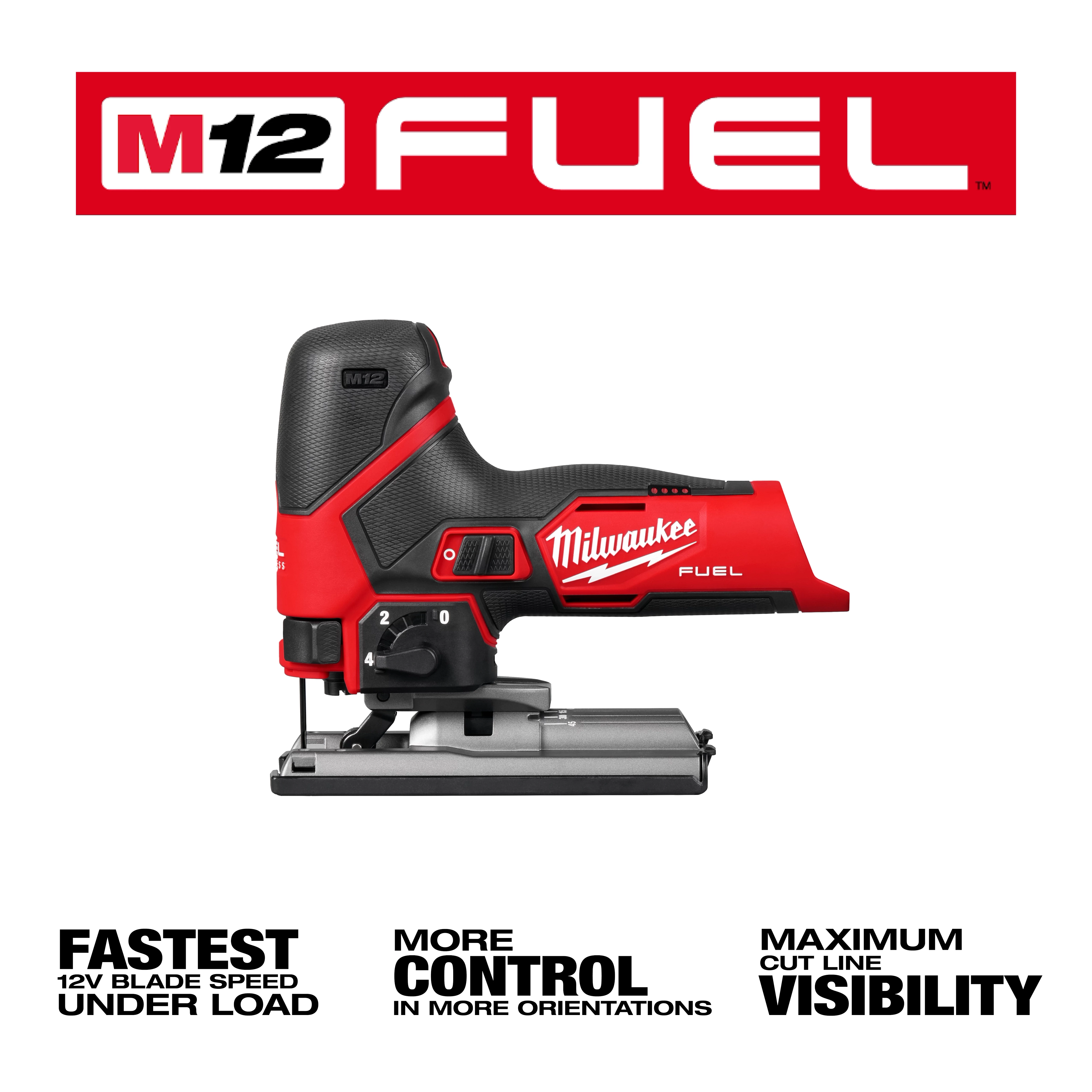

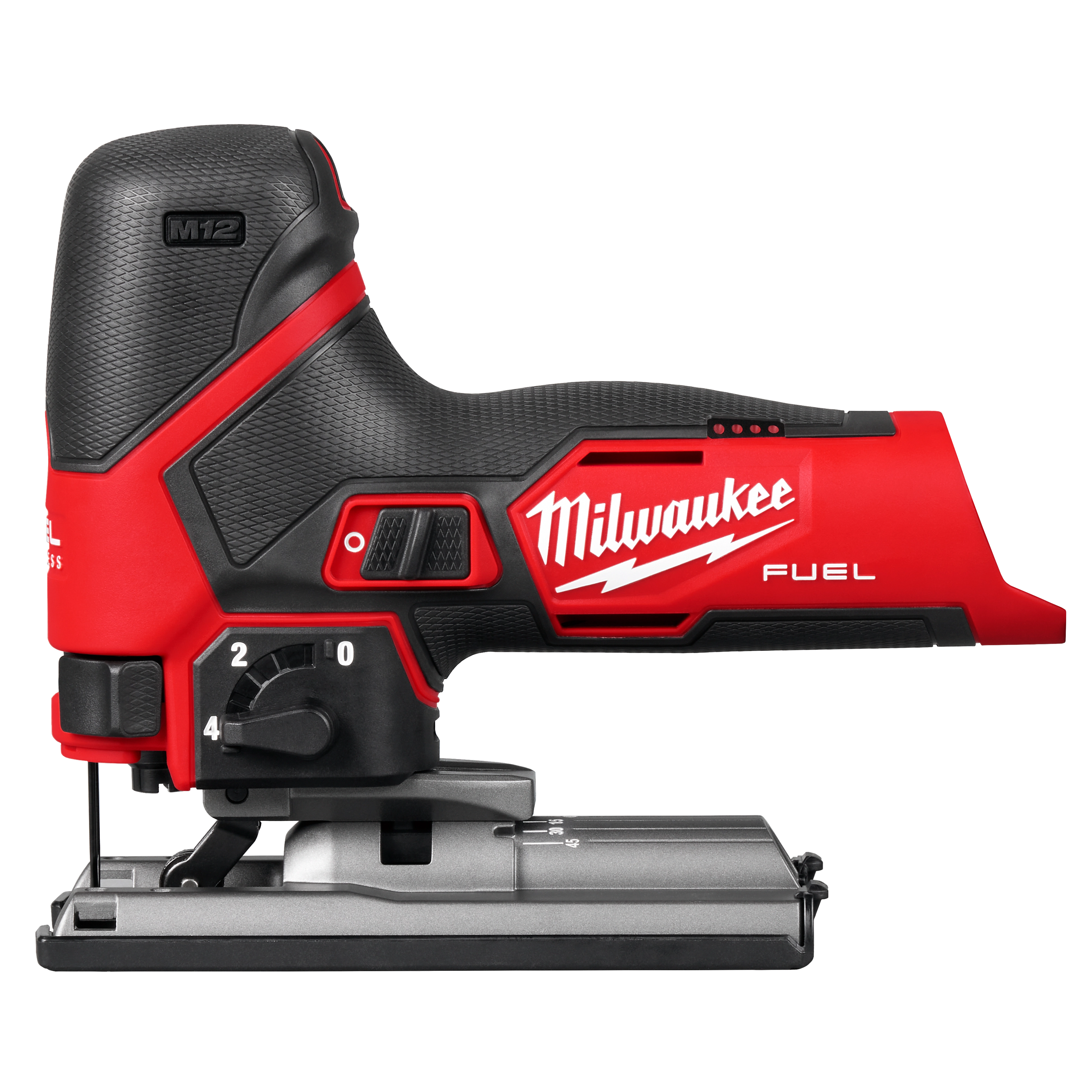

M12 FUEL™ Jig Saw
2545-20M12 FUEL™ Jig Saw

Specs

Loading

Product Overview

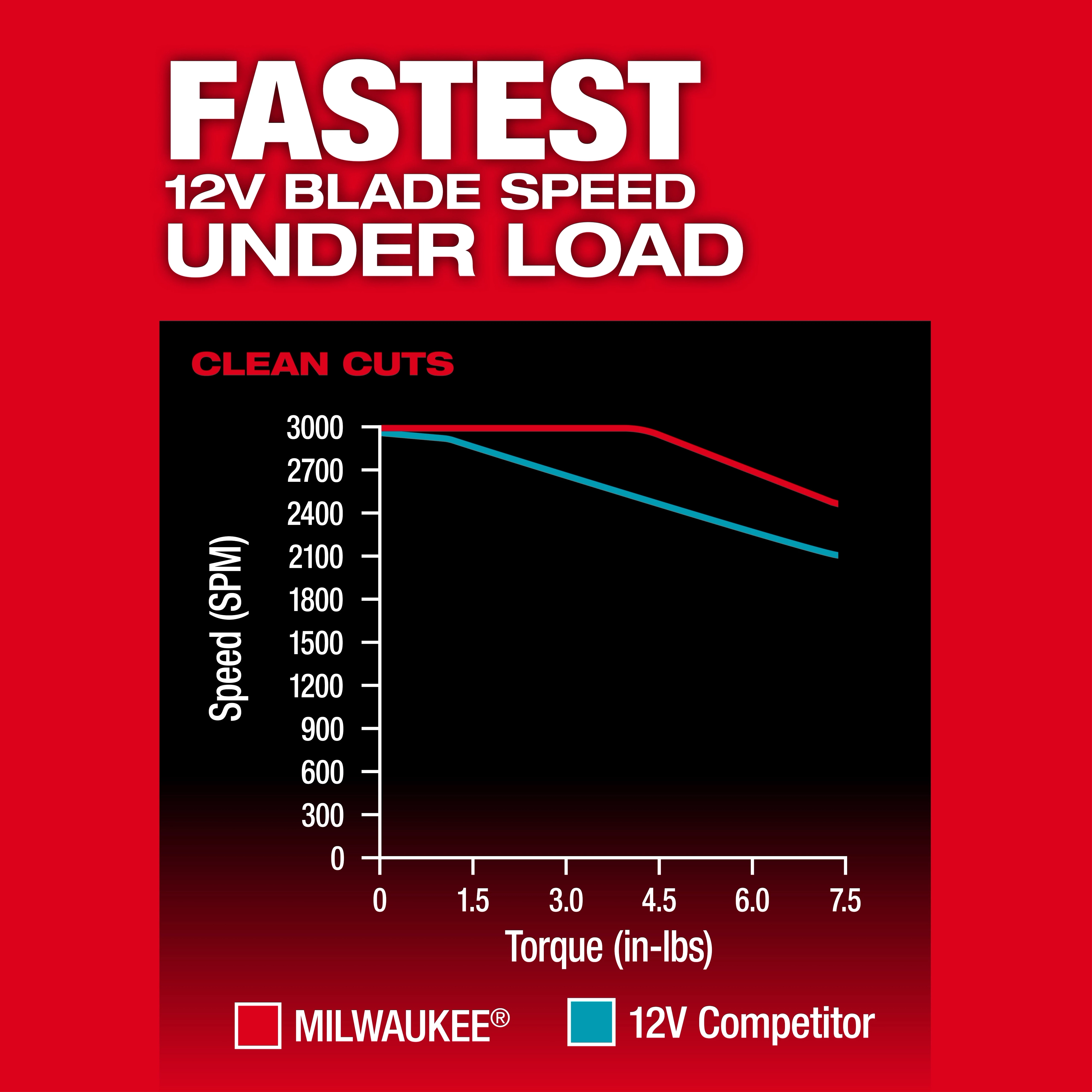

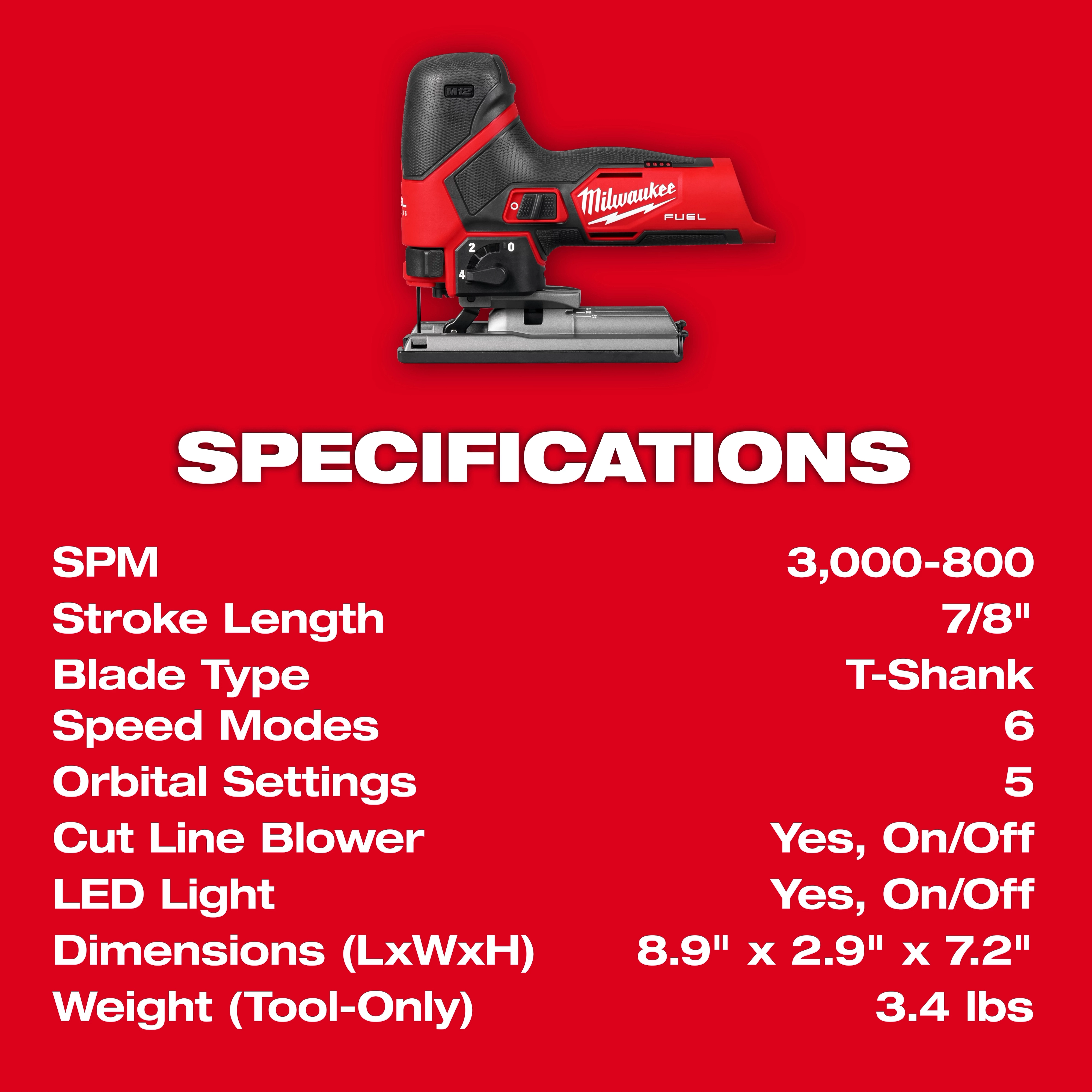

Designed for the professional carpenter and remodeler, our M12 FUEL™ Jig Saw is optimized for power and precision on the jobsite. The M12 FUEL™ Jig Saw delivers the Fastest 12V Blade Speed Under Load, More Control in More Orientations, and Maximum Cut Line Visibility. The POWERSTATE™ Brushless Motor and REDLINK PLUS™ Intelligence deliver 3000 strokes per minute at a 7/8" stroke for clean, controlled cuts in a wide variety of finish materials. The compact size, low vibration, and ergonomic barrel-grip design provide more control across standard and inverted orientations of usage. The saw is equipped with an on/off LED light and on/off dust blower to optimize cut line visibility for the application at hand. Our M12™ FUEL Jig Saw features orbital action with 5 adjustment levels, variable speed dial, blade storage, tool-less blade change, a durable aluminum base plate with bevel detents, and carries our industry-leading 5-year limited power tool warranty.

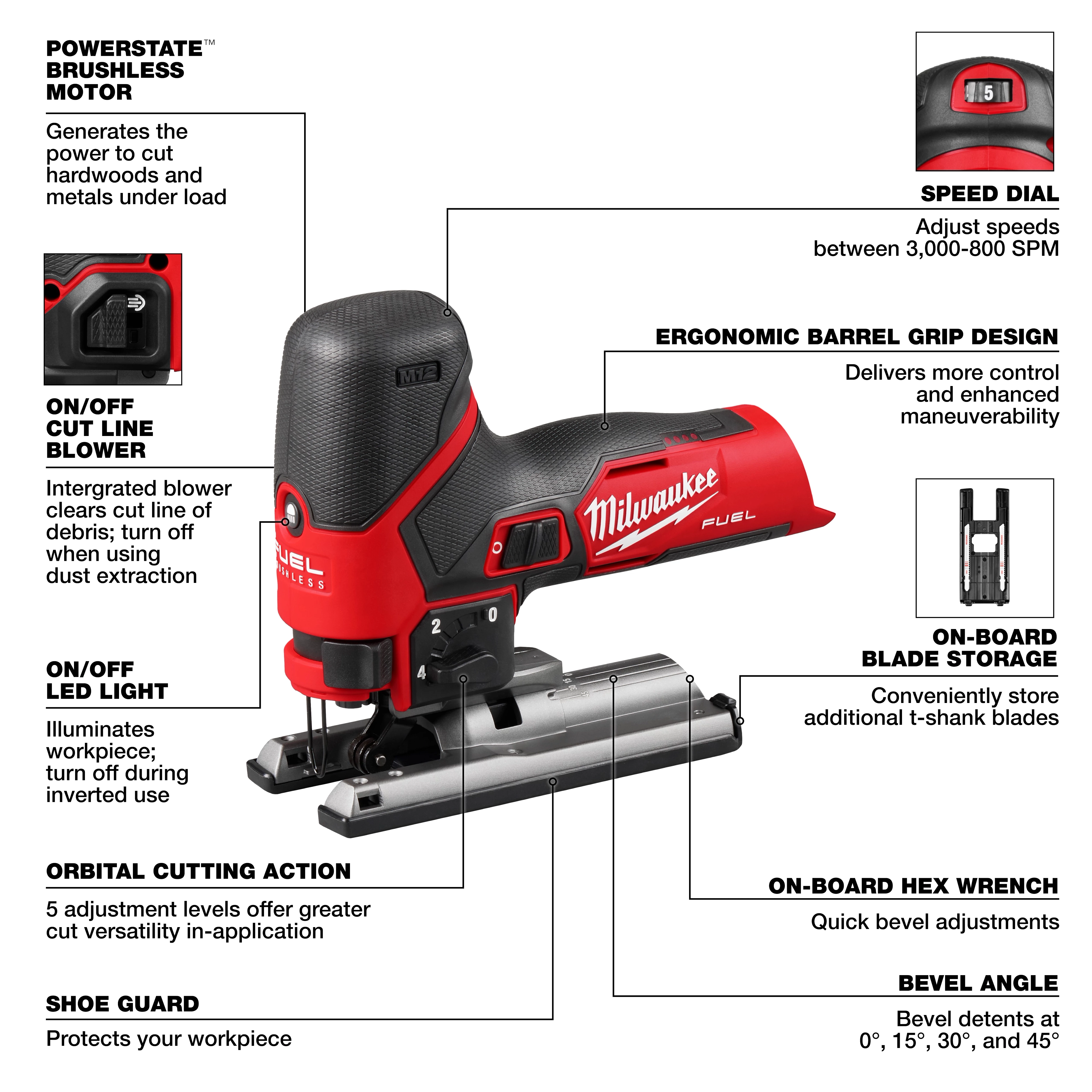

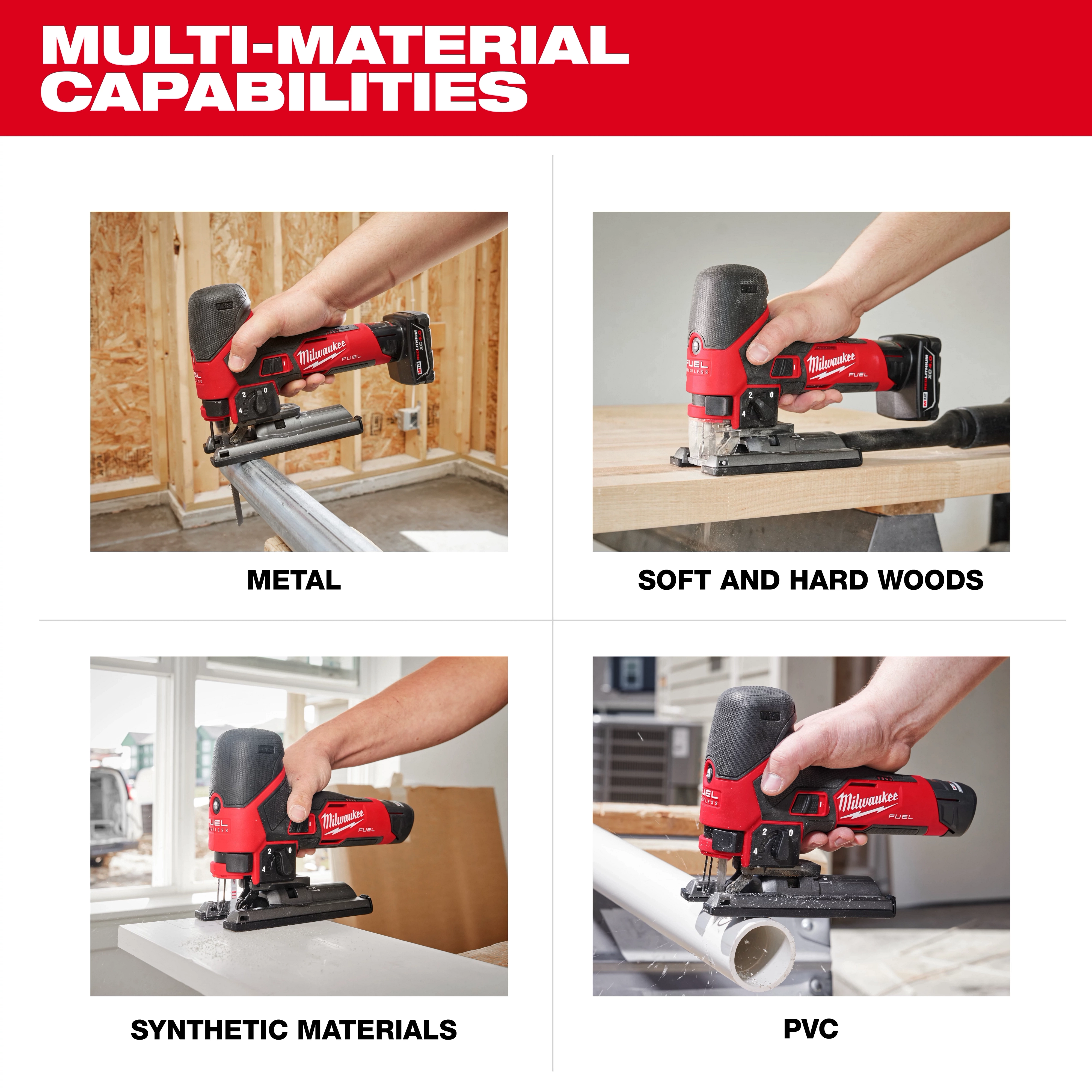

  • POWERSTATE™ Brushless Motor: Generates the power to cut hardwoods and metals under load.

  • REDLINK PLUS™ Intelligence: Ensures maximum performance and protects from overloads, heating, and over-discharge.

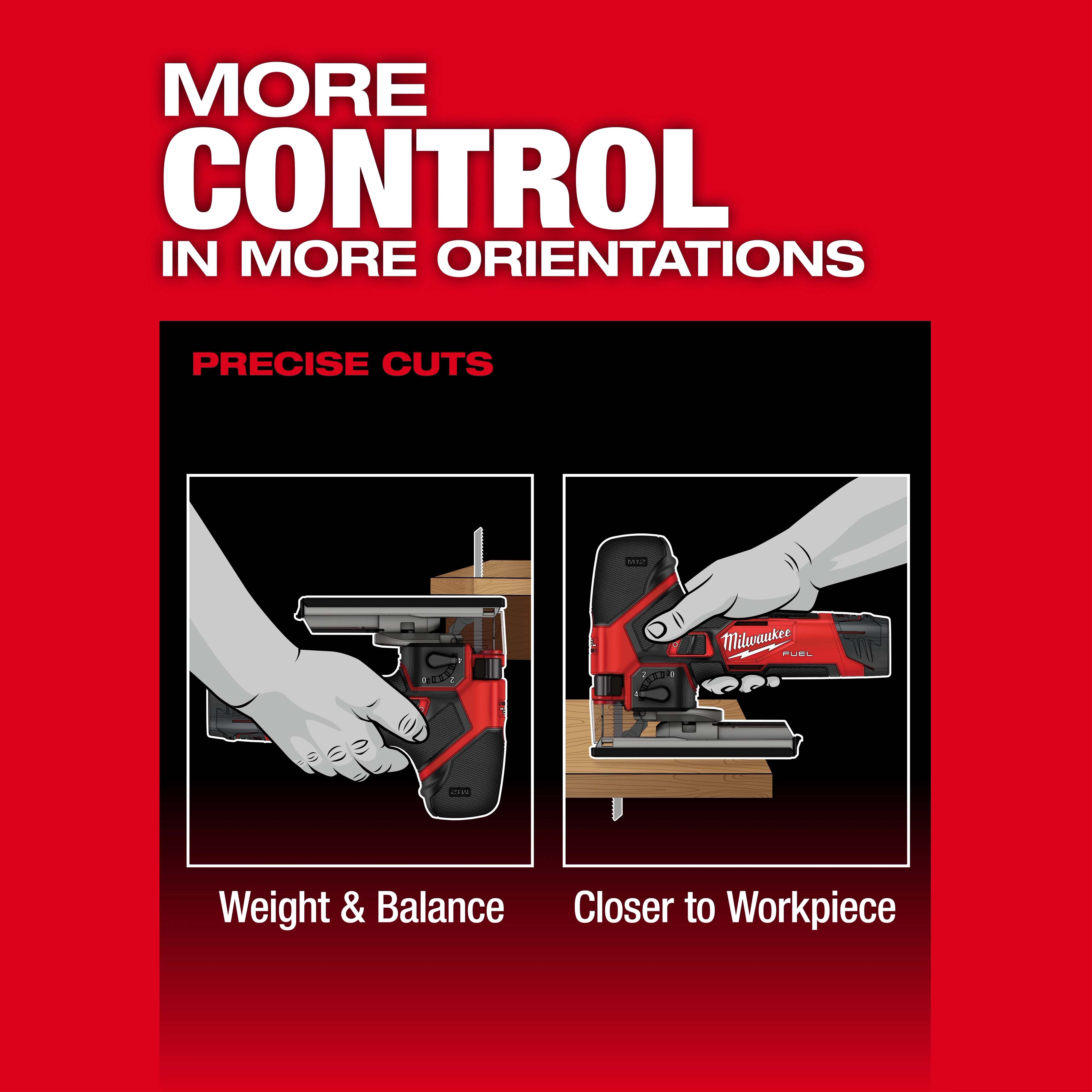

  • Ergonomic barrel grip design delivers more control and enhanced maneuverability.

  • Variable speed dial provides 5 adjustment settings that range from 3000 - 800 SPM.

  • Orbital action with 5 adjustment levels offers greater cut versatility in application.

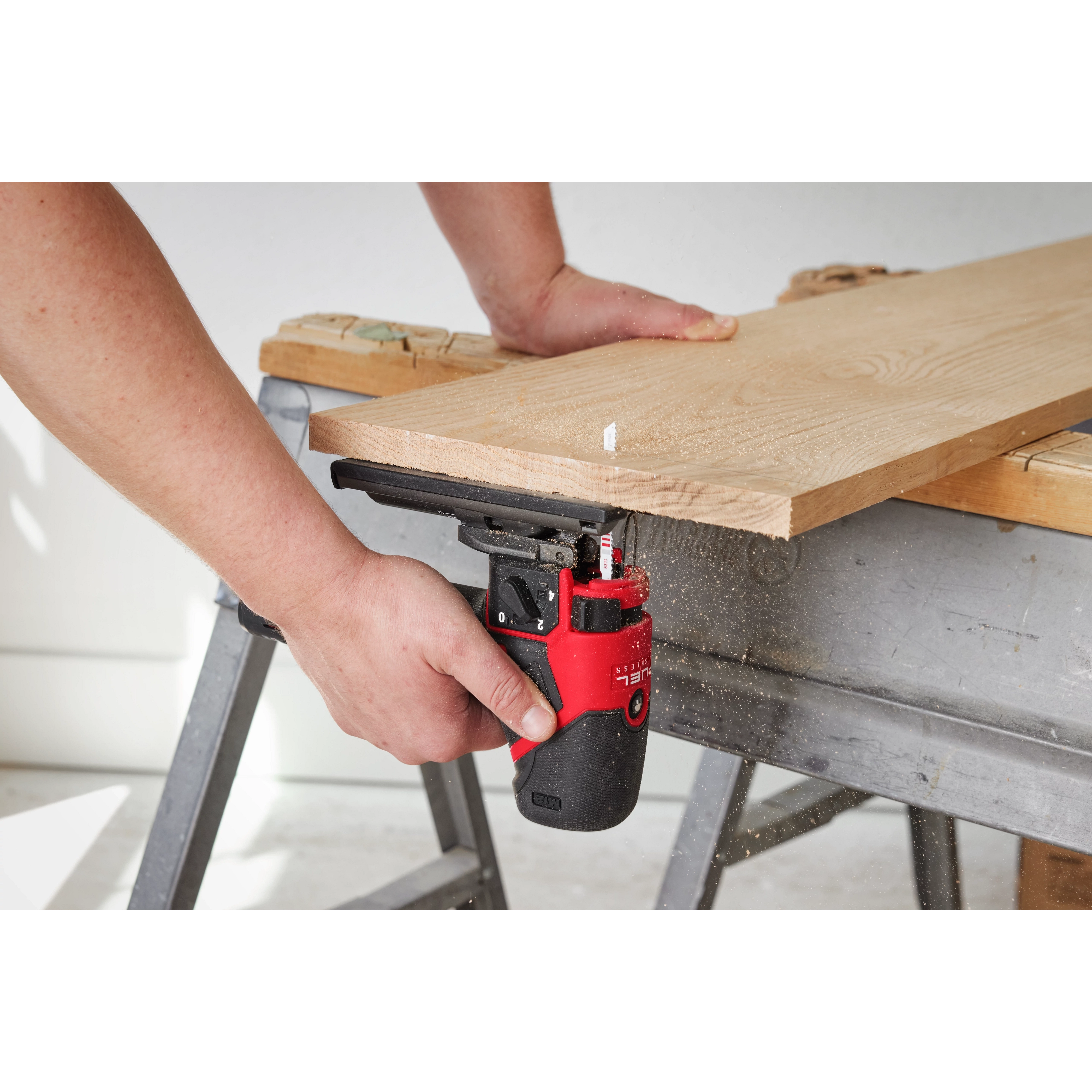

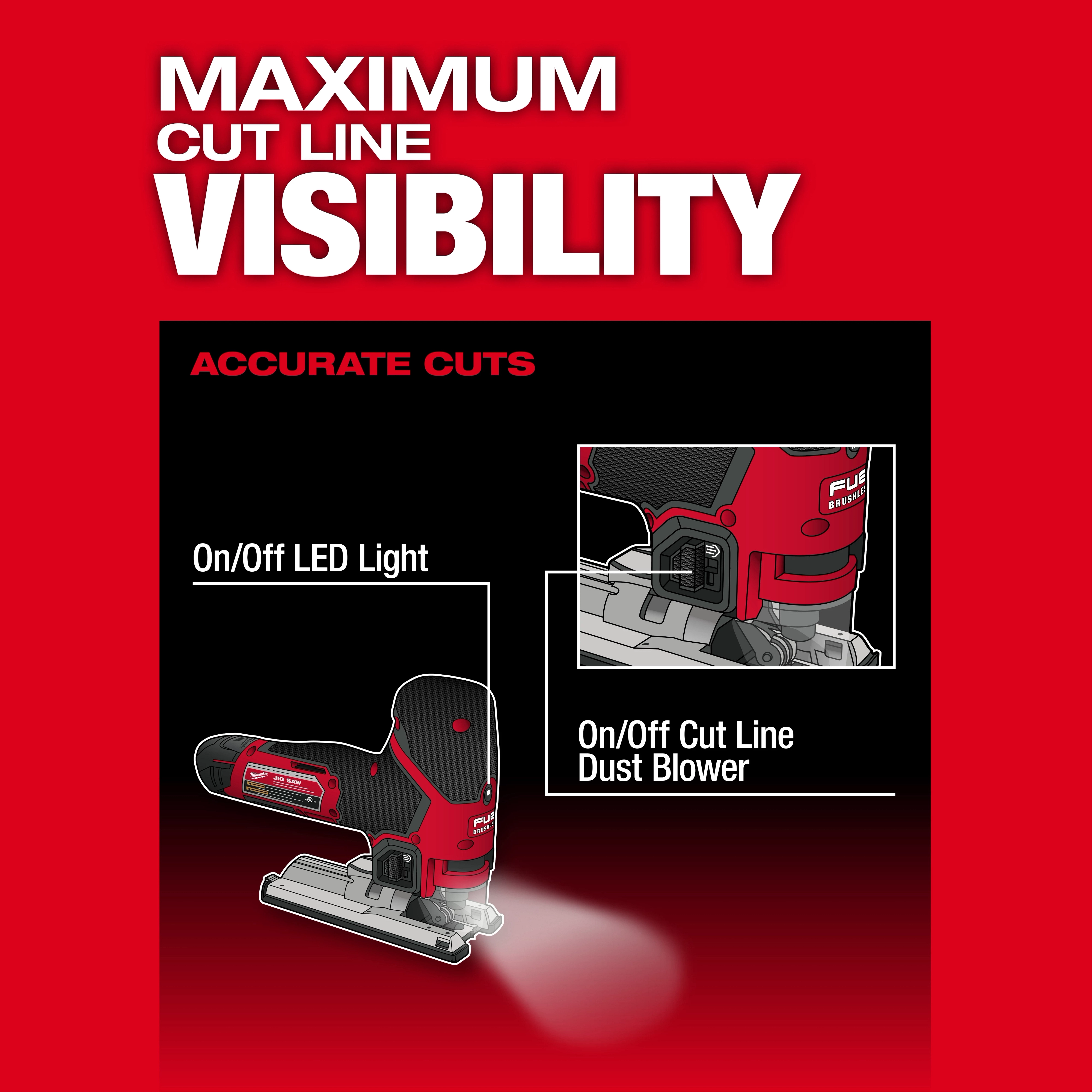

  • LED light illuminates the workpiece and allows user to turn off during inverted use.

  • Integrated blower clears the cut line of debris and allows user to turn off when using dust extraction.

  • Accepts T-Shank jig saw blades.

  • On-board blade storage

  • Tool-free quick eject blade change

  • Durable aluminum base plate with bevel detents at 0°, 15°, 30°, and 45°.

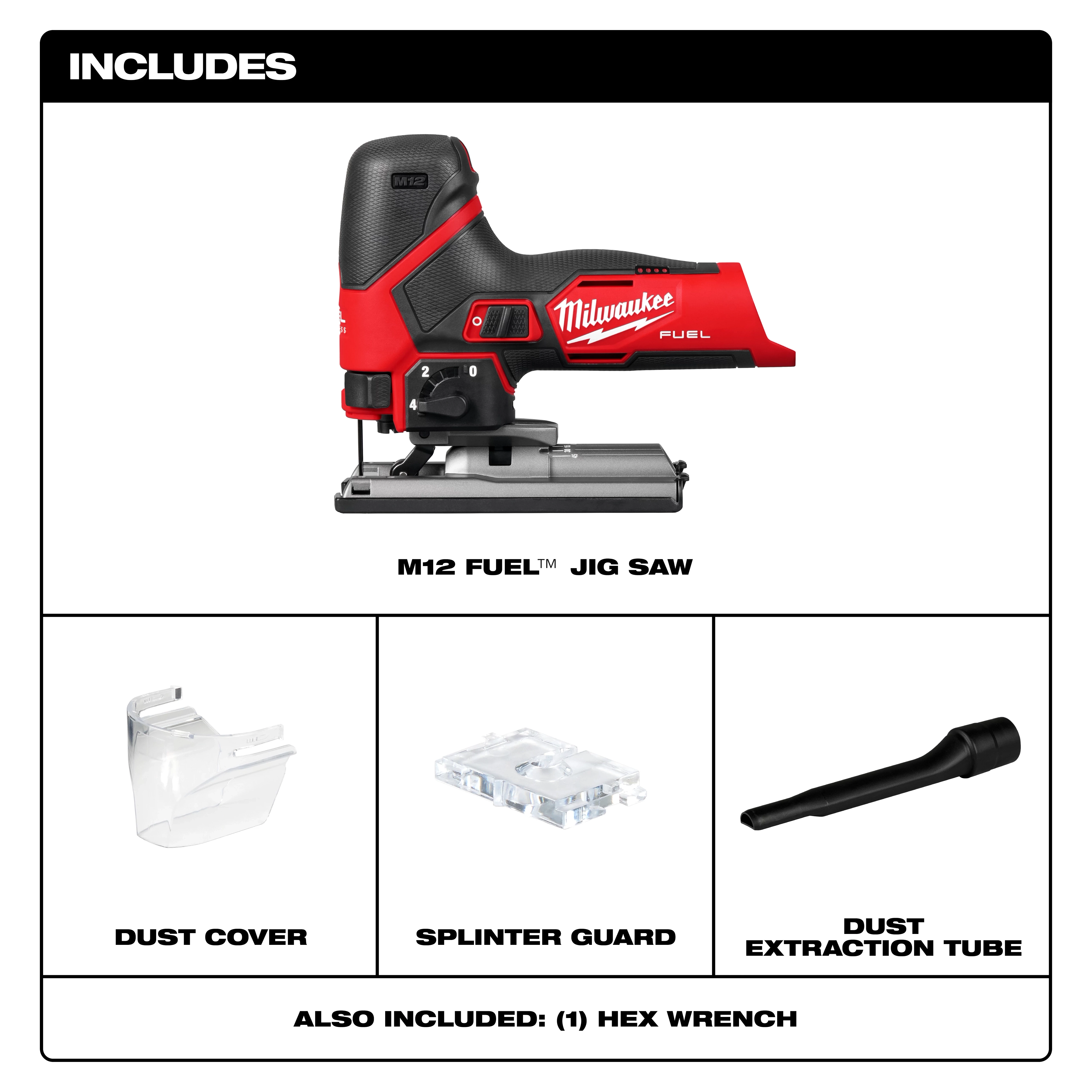

  • Includes Dust Cover, Splinter Guard, Shoe Cover, Vacuum Shroud

  • On-board hex wrench for quick, efficient bevel adjustments.

  • Compatible with over 125+ tools on the M12™ System.
