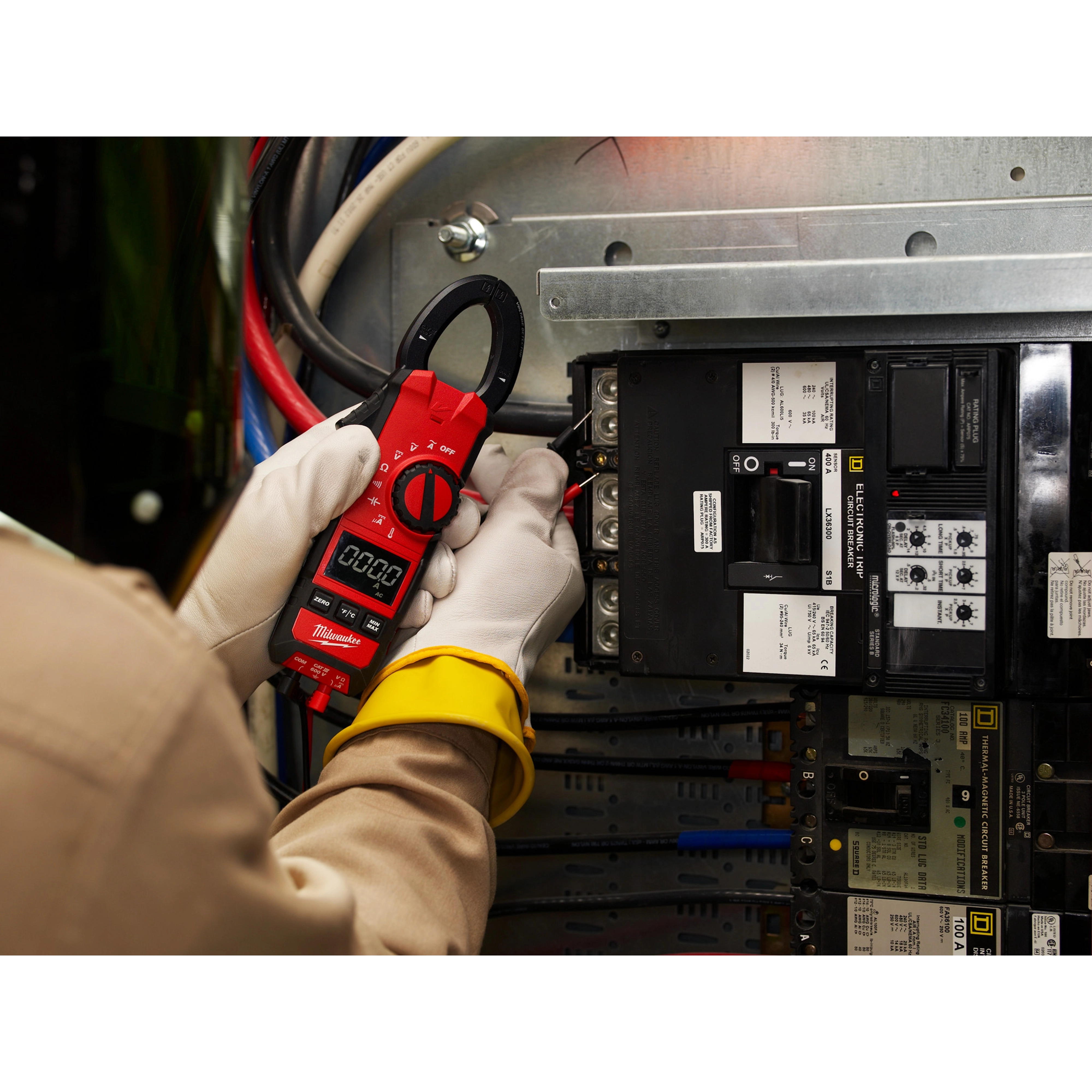

Clamp Meter for HVAC/R

Our 600A Clamp Meter for HVAC/R is a TRMS clamp meter for professional residential, commercial, and industrial applications. Made with a high-contrast, white-on-black display, our meter provides the clearest readings. The clamp meter measures 600µa DC and offers contact temperature functionality with a range of -40˚F - 752˚F allowing for the most common HVAC/R applications. Additionally, the meter offers a wide voltage range of 600V AC/DC and current measurements up to 600A AC. The rugged over-molded grip allows for better grip and increased durability. The meter is rated to CATIII 600V and meets UL safety specifications required by electrical users. This meter is covered by our 5-Year Warranty.

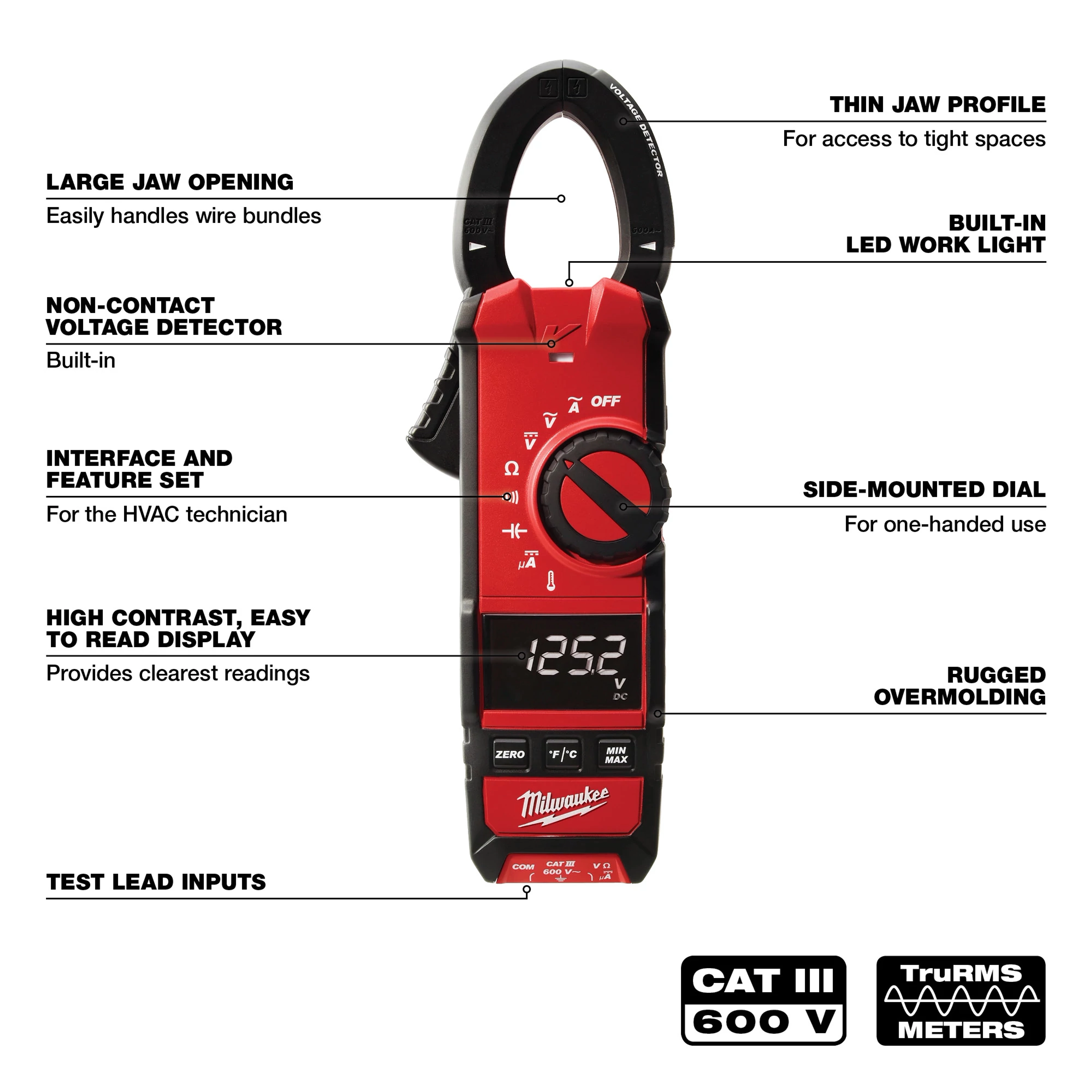

• 600 uA DC for Flame Rectification

• Built-In Voltage Detector and LED Work Light

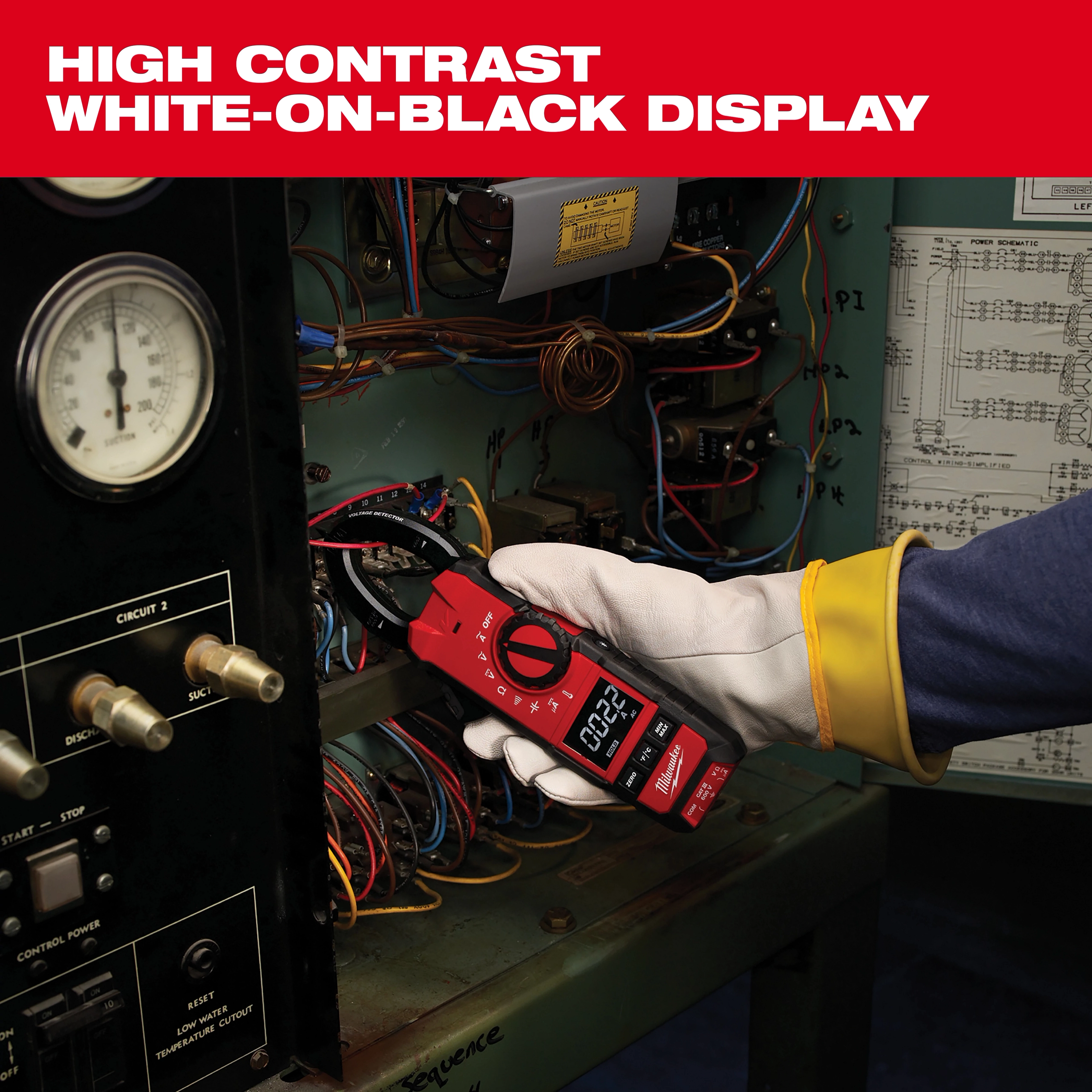

• High Contrast, White on Black Display with Backlight for easy reading

• Measures up to 600 amps AC, Large 1.30” jaw opening

• Rugged over-molding increases durability and user grip

• Thermocouple (dual banana) input for contact temperature measurement

• Thin Jaw Profile for easier wire measurement in panels or in bundles

• True-RMS for accurate measurement in all applications

• Wide Voltage range to 600 AC/DC volts

• Powered by (2) AA batteries

• 5-Year Warranty
